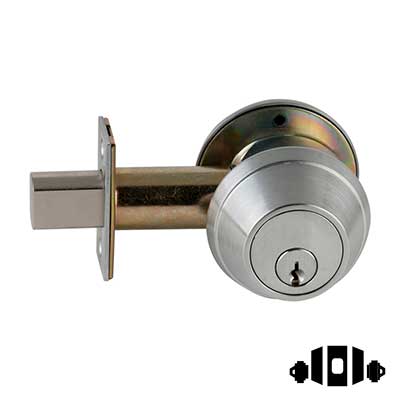

Schlage B600 Series Overview
Commercial Grade Deadbolts
The B600 Series are Schlage’s highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. A variety of functions and finishes makes the B600Series a versatile choice for added security no matter where you use it.
Manufacturer | Schlage |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
Function | 662-Double Cylinder Deadbolt Lock |
ANSI Function |
E0141 - Double Cylinder Deadbolt |
Cylinder Type |
Conventional Cylinder |
Door Thickness | 1-5/8" - 2" |
Std. Latch Number | 12-631 |
Std. Latch Type | Deadbolt |
Std. Latch Backset Dim | 2-3/4 In. |
Lock Face Size | 2-1/4 In. x 1-1/8 In. |
Bolt Projection | 1 In. |
Std. Strike Number | 10-094 |
Std. Strike Type | Flat |
Std. Strike Height | 2-3/4 In. |
Std. Strike Width | 1-1/8 In. |
Dust Box | None |
Product Type | Deadbolts |
