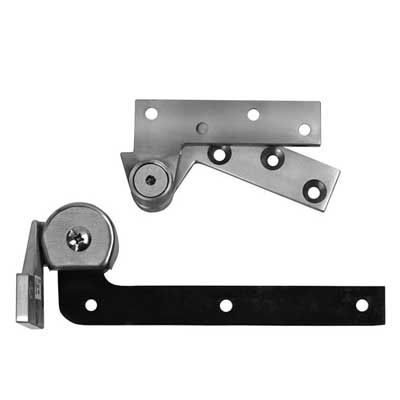

ABH 0117.25 Jamb Mount Pivot Set 3/4" Offset Top And Bottom Complete Set, Max Weight 250Lb

  • SKU: 011725US32DRH

ABH 0117.25 Jamb Mount Pivot Set 3/4" Offset Top And Bottom Complete Set, Max Weight 250Lb

  • SKU: 011725US32DRH
Sale price$230.69/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel
Handing: RH - Right Hand
Visa Mastercard American Express Discover Shop Pay Apple Pay

ABH 0117.25 Jamb Mount Pivot Set 3/4" Offset Top And Bottom Complete Set, Max Weight 250Lb  Handed Specify LH Or RH

Features:

  • 019 intermediate pivot recommended (order separately) Handed - Specify LH or RH

  • Maximum door load 250 pounds Maximum door width - 42" UL listed for use on 3-hour fire-rated doors -

  • Standard Heavy-duty bearings Stainless steel base material Average weight per unit = 3.25 lbs Doors ranging from 60" to 90” tall should use one intermediate pivot.

  • An additional intermediate pivot should be used for each additional 30" door height.

Includes:

  • 0180 Top Pivot Frame leaf mortises into header Door leaf mortises into the top of the door
  • 0117.25B Bottom Pivot Bottom leaf mortises into floor Door leaf mortises into the bottom of the door

Pivot Handing Chart
