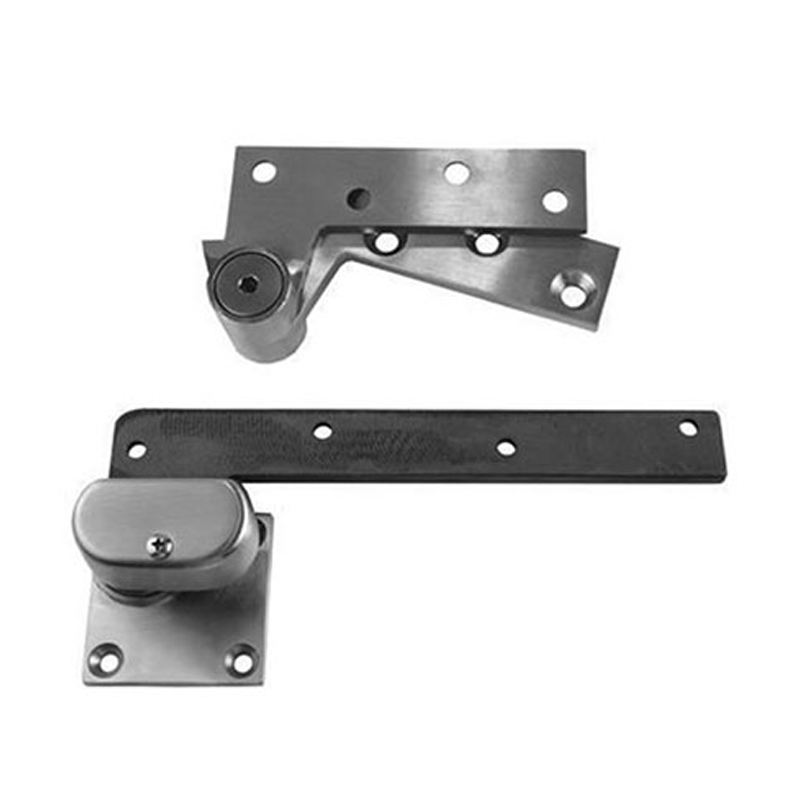

ABH 0147 Heavy Weight 3/4 Inch Offset Door Pivot Top And Bottom Set

  • SKU: 0147US32DLH

ABH 0147 Heavy Weight 3/4 Inch Offset Door Pivot Top And Bottom Set

  • SKU: 0147US32DLH
  • Available (2‑3 Days)
    2-3 Days Lead Time
Your Price
Sale price$307.81/ea
Finish: US32D-630 Satin Stainless Steel
Handing: LH Left Hand

ABH 0147 Heavy Weight 3/4 Inch Offset Door Pivot Top And Bottom Set, 1-3/4 Tk Door, Max Door Width 48 Inch, Max Door Load 600Lbs, UL Listed 3 Hr Fire

This ABH 0147 set includes a heavy-duty 3/4 inch offset door pivot for both the top and bottom of the door. It is suitable for use with 1 3/4 inch thick doors, with a maximum door width of 48 inches and a weight capacity of up to 600 lbs. Additionally, it is UL listed for 3 hours of fire resistance.

Features:

  • 019 intermediate pivot required (order separately)
  • Handed - Specify LH or RH
  • Maximum door load 600 pounds Maximum door width - 48" UL listed for use on 3-hour fire-rated doors
  • Standard Heavy-duty bearings Stainless steel base material Average weight per unit = 4 lbs Doors ranging from 60" to 90” tall should use one intermediate pivot.
  • An additional intermediate pivot should be used for each extra 30" door height. Frame leaf mortises into the header
  • Door leaf mortises into the top of the door
  • Bottom leaf mounts on top of concrete floor Door leaf mortises into the bottom of the door

Includes:

  • 0180 Top Pivot Frame leaf mortises into the header
  • Door leaf mortises into the top of the door
  • 0147B Bottom Pivot Bottom leaf mounts on top of concrete floor
  • Door leaf mortises into the bottom of the door
Brand ABH
SKU ABH 0147
Door Weight up to 600 lbs.
Usage Heavy Duty
Compliance ANSI/C07162/C07202
Pivot Type Offset Pivots
