ABH A500-US32D Full Mortise Heavy Duty Concealed Continuous Hinge, Satin Stainless Steel Finish

  • SKU: A50068US32DLH

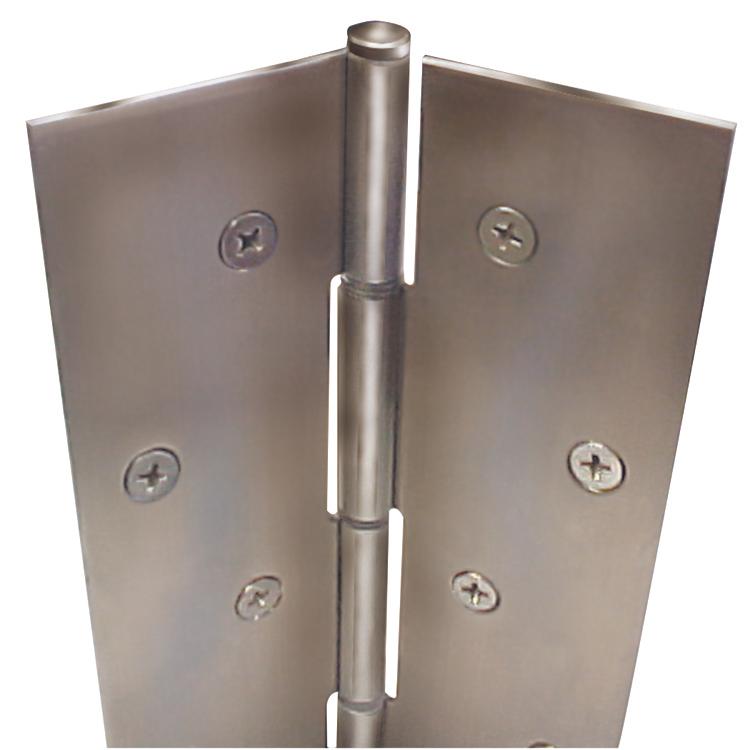

Full Mortise Continuous Hinges by ABH Hinges
All ABH Products

ABH A500-US32D Full Mortise Heavy Duty Concealed Continuous Hinge, Satin Stainless Steel Finish

  • SKU: A50068US32DLH
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$288.60/ea
ABH Hinge Options: Standard
AHB Hinge Sizes: 6'8"
Handing: LH Left Hand

ABH A500-US32D Full Mortise Heavy Duty Concealed Continuous Hinge, 48 In Max Door Width, Max Door Load 600 Lbs, 630 Satin Stainless Steel 304 Finish

The ABH Continuous Hinge with an A500 Stainless Steel Barrel comes in US32D satin stainless steel. This ABH hinge fits a maximum door width of 48" and can hold up to 600 lbs. It is the perfect continuous hinge for heavy-duty needs.
  • Fully concealed, heavy-duty
  • 1/8" door inset
  • 48" door width maximum
  • 600 lbs. door weight maximum
  • Average weight per unit = 16 lbs
  • Fasteners: 10-24 x 7/8" undercut, self-drilling, thread-forming tek machines screws, stainless steel and #10 x 1-1/4" undercut, wood screws, stainless steel
  • Lengths: 78-3/4", 83-1/8". 85", 95" and 118-3/4"
  • Fire Rating - tested and certified by UL ® (the U.S.A. and Canada) on 4'0" x 10'0" fire-rated doors, based on the following
    • 20 minutes - wood doors
    • 90 minutes hollow metal and composite wood fire doors
    • 3 hours - hollow metal doors
