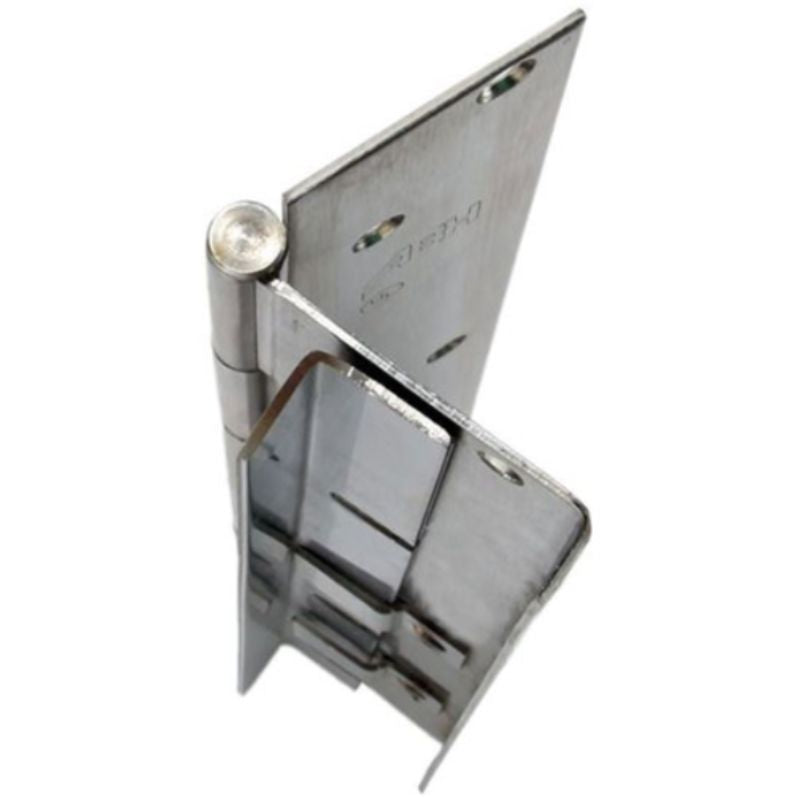

ABH A505-HT-US32D Stainless Steel Hospital Tip Continuous Pin And Barrel Hinge Full Concealed With Edge Guard, 48 In Max Door Width, Up to 600 Lbs, 630 Satin Stainless Steel 304 Finish

The ABH A505-HT-US32D Stainless Steel Hospital Tip Continuous Pin And Barrel Hinge is a versatile and durable choice for full concealed doors. It boasts a 304 satin stainless steel finish and edge guard for added protection, and can accommodate doors up to 48 inches wide and 600 lbs in weight. With its high-quality construction and reliable performance, this hinge is a smart choice for any commercial or industrial setting.

Features:

• Full concealed, heavy duty
• No door inset, flush mount
• Door edge guard on both faces of door
• 48” door width maximum
• 600 lbs. door weight maximum
• Fasteners: 10-24 x ⅞” undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼” undercut wood screws, stainless steel
• Lengths: 78-¾”, 83-⅛”, and 95”
• Finishes: US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating - tested and certified by UL® (U.S.A. and Canada) on 4’0” x 10’0” fire rated doors, based on the following:
  • 20 minutes – wood doors
  • 90 minutes – hollow metal and composite core wood fire doors
  • 3 hours – hollow metal doors
