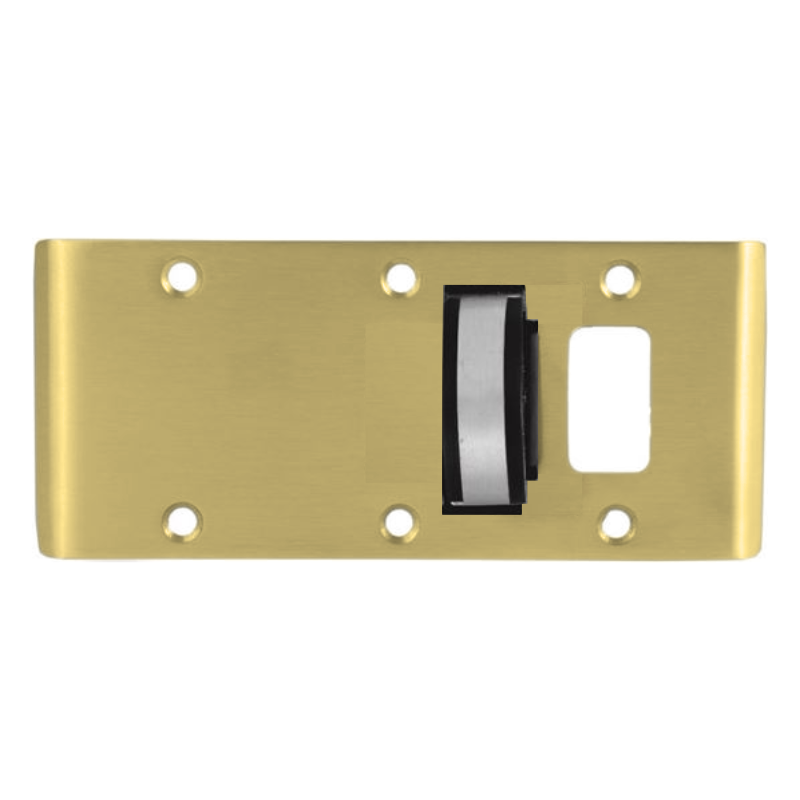

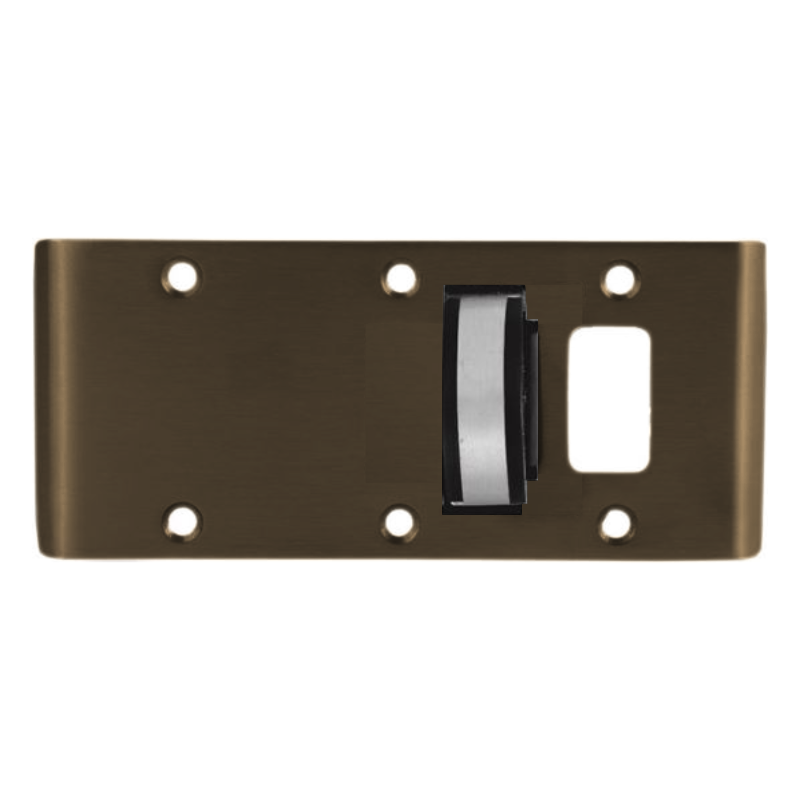

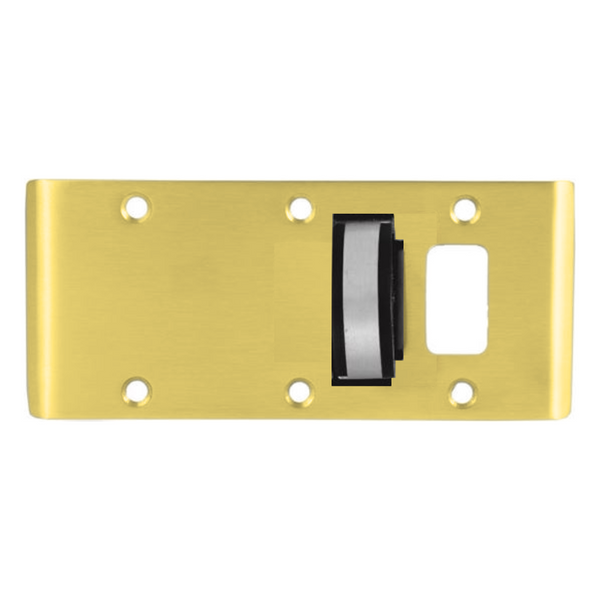

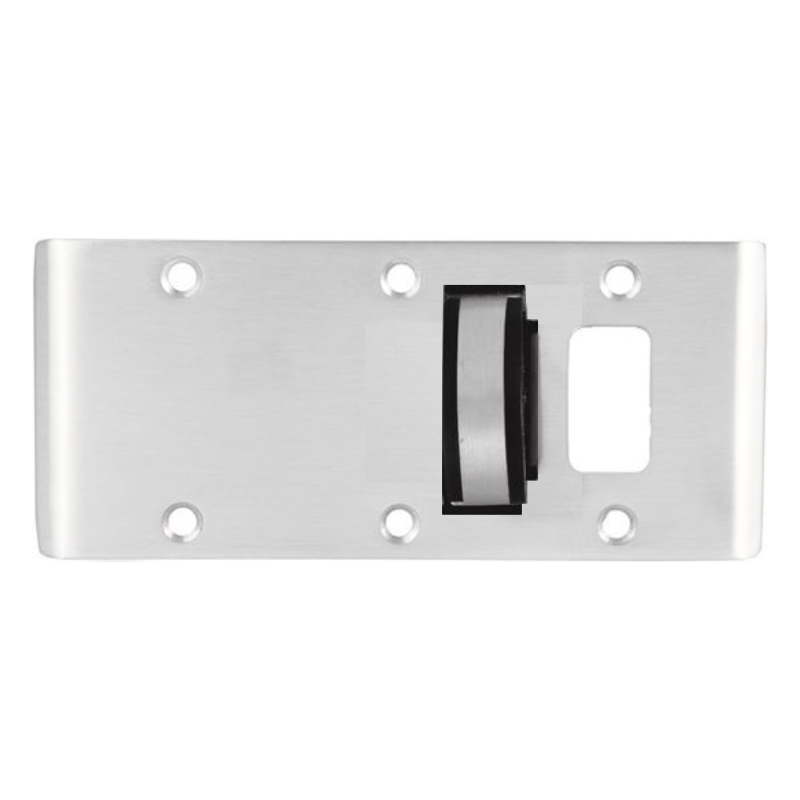

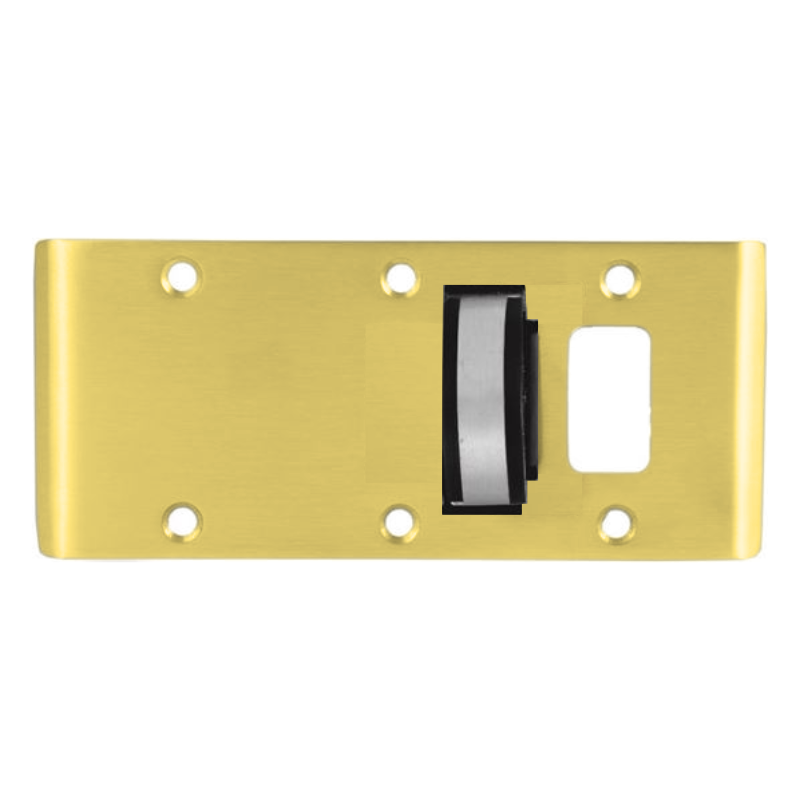

ABH CR4580 Double-Lipped Strike & Rescue Stop Combos Half Moon Style, 6 3/4 Frame Jamb Depth, 1/8 Inch Inset Doors For Cylindrical Latches, 1 3/4 Tk Doors

The ABH CR4580 features a double-lipped strike and rescue stop combo in a half-moon design, suited for frame jambs with a 6 3/4 inch depth. It is designed for 1/8 inch inset doors equipped with cylindrical latches and fits doors with a thickness of 1 3/4 inches.

• Intended for use in hospital or nursing home patient bathroom doors

• Allows door to open in both directions without damaging the frame after manually rotating the rescue stop into the frame

• Stop automatically returns to projected position when released

• Built-in hold back option

• Door to be mounted on center hung pivot set – ABH 0327, 0127, 0128 or 0370

• For use on 1-¾” thick doors

• Cut-out is standard for cylindrical latches. Custom units available for mortise locks

• Supplied with 8-32 x ⅜” undercut machine screws

• .074” thick stainless steel material

• Meets and/or exceeds ANSI Standard A1882
