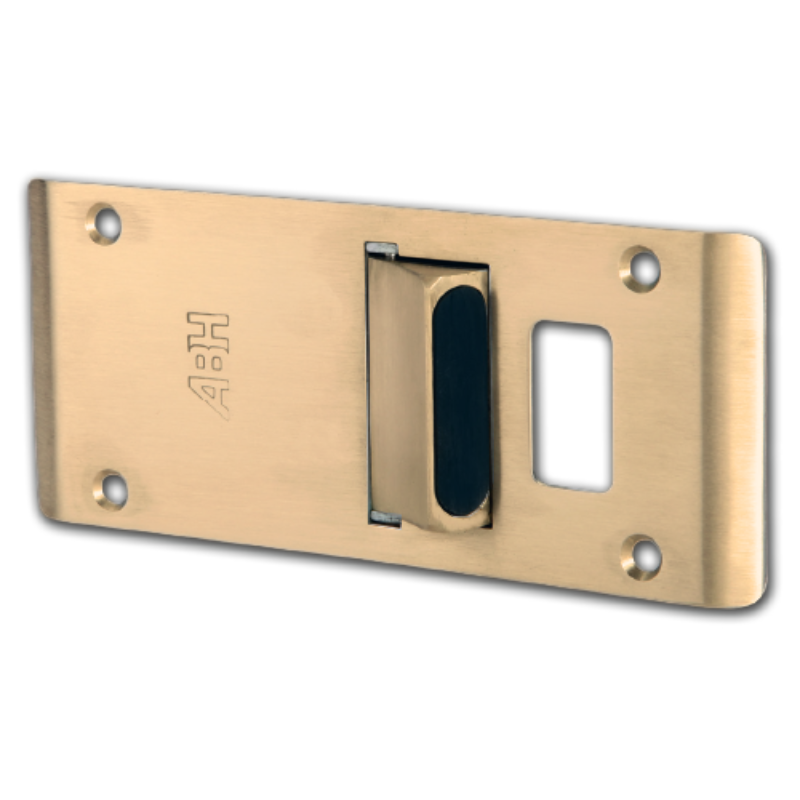

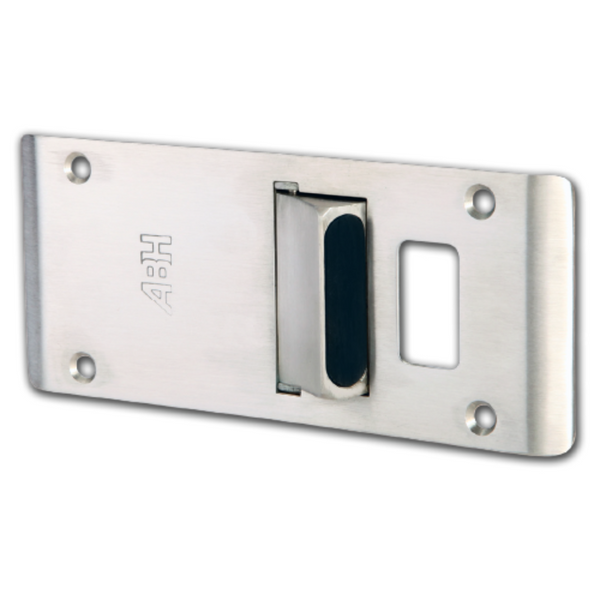

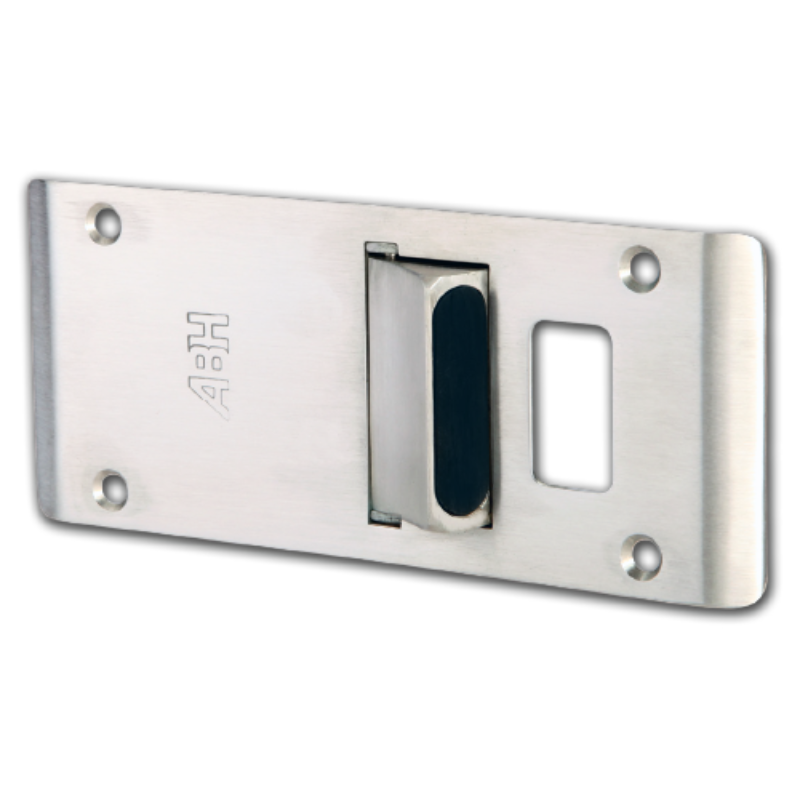

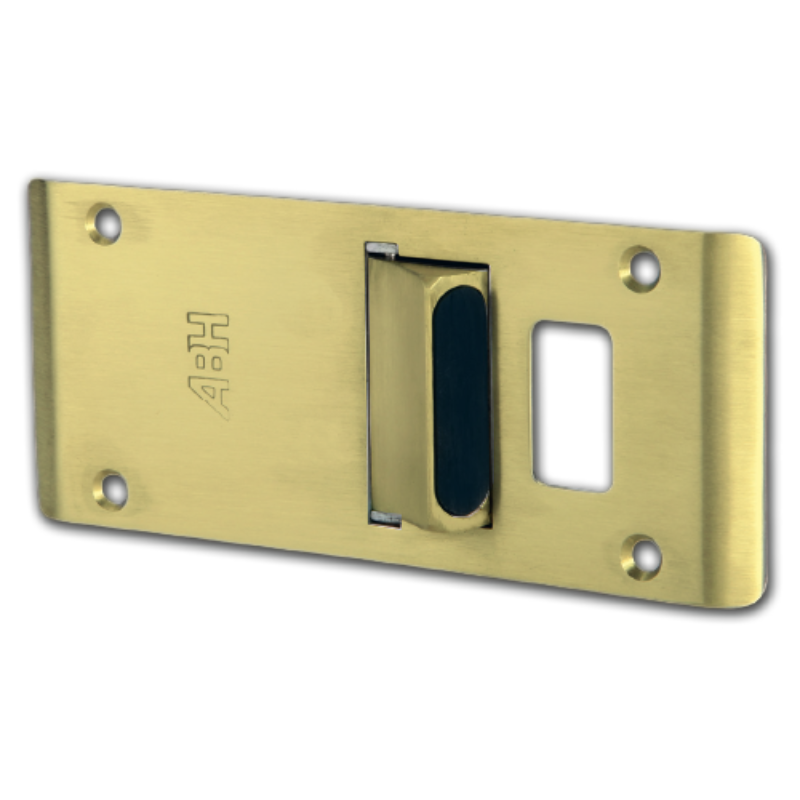

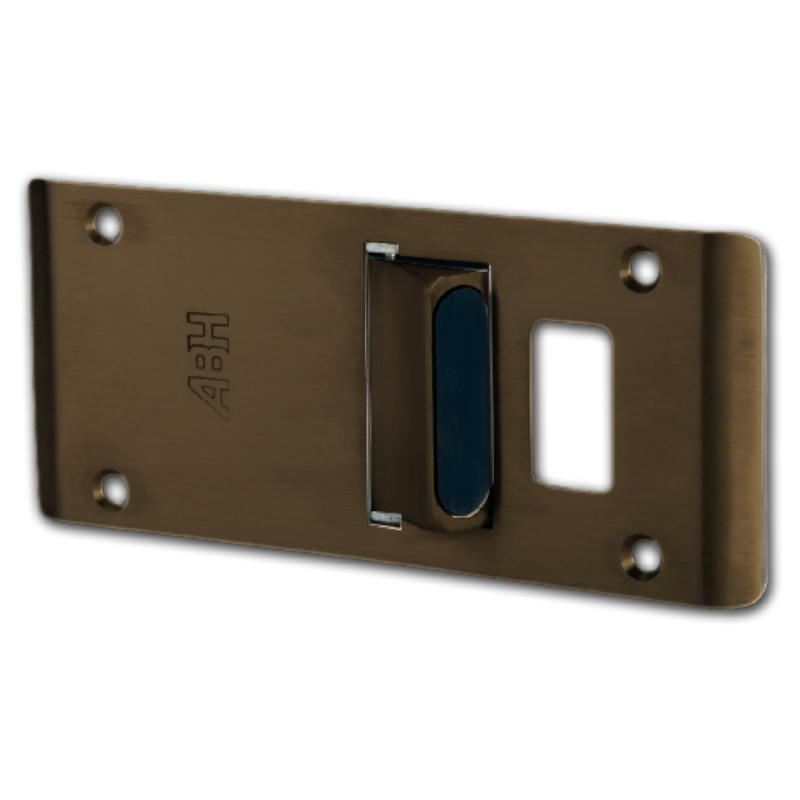

ABH CR4594 Double-Lipped Strike & Rescue Stop Combos Flipper Style, 5 3/4 Frame Jamb Depth, 1/8 Inch Inset Doors For Cylindrical Latches, 1 3/4 tk Doors

The ABH CR4594 features a double-lipped strike and rescue stop combo in a flipper style, designed for a 5 3/4-inch frame jamb depth. It is compatible with 1/8-inch inset doors, specifically for cylindrical latches on 1 3/4-inch thick doors.

• Intended for use in hospital or nursing home patient bathroom doors

• Allows door to open in both directions without damaging the frame after manually pushing the rescue stop into the frame

• Stop automatically returns to the projected position when released

• Door to be mounted on center hung pivot set – ABH 0327, 0127, 0128 or 0370

• Cut-out is standard for cylindrical latches. Custom units available for mortise locks

• Supplied with 8-32 x ⅜” undercut machine screws

• .074” thick stainless steel material

• Meets and/or exceeds ANSI Standard A1882
