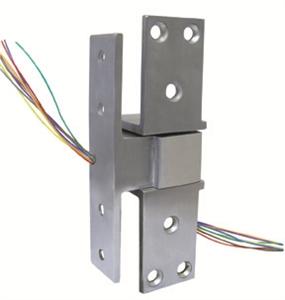

ABH E0519-US32D Electrified Pocket Pivot, Heavy Duty, Max Door Load per Pivot 90Lbs., Non-Handed, 630 Satin Stainless Steel Finish

Features:

The pivot point is located inside the frame

Allows door to swing into a pocket in the frame at a right angle When the door is in the pocket, it is completely clear of the door opening and flush with the adjacent wall

Maximum door swing is 90° Minimum three-pocket pivots per door 60" - 90" tall Add one pocket pivot for each additional 30" door height

Maximum door load per pivot - 90 pounds

Non-handed

UL listed for use on 3-hour fire rated doors - Standard Heavy-duty stainless steel needle bearings Stainless steel base material

Average weight per unit = 3 lbs
