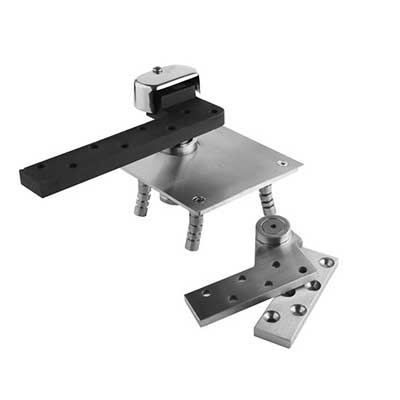

ABH L0117 Extra Heavy Duty Lead Lined Pivot
ABH L0117 Extra Heavy Duty Lead Lined Pivot
ABH L0117 Extra Heavy Duty Lead Lined Pivot Set
Handing Chart
ABH L0117 Extra Heavy Duty Lead Lined Pivot
ABH L0117 Extra Heavy Duty Lead Lined Pivot
ABH L0117 Extra Heavy Duty Lead Lined Pivot
ABH L0117 Extra Heavy Duty Lead Lined Pivot
All ABH Products

ABH L0117 Lead Lined Extra Heavy Duty 3/4 Inch Offset Pivot Set, Top And Bottom

  • SKU: L0117US32DRH
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
$620.51/ea
Finish: US32D-630 Satin Stainless Steel
Handing: RH - Right Hand

ABH L0117 Lead Lined Extra Heavy Duty 3/4 Inch Offset Pivot Set, Top And Bottom, Max Dr Width 48 Inch, Up To 1,750 LB

Features:

  • L019 intermediate pivot required (order separately)
  • For use on 1-3/4" lead-lined doors
  • Handed - Specify LH or RH
  • Maximum door load 1,750 pounds Maximum door width - 48" UL listed for use on 3-hour fire-rated doors -
  • Standard Heavy-Duty bearings Stainless steel base material Average weight per unit = 9 lbs Doors ranging from 60" to 90” tall should use one intermediate pivot.
  • An additional intermediate pivot should be used for each additional 30" door height







Including:

  • L0180 Top Pivot Frame leaf mortises into the header Door leaf mortises into the top of the door
  • L0117B Bottom Pivot Bottom leaf mortises into the floor
  • Door leaf mortises into the bottom of the door
