ABH L0147 Lead lined Heavy Duty 3/4 Inch Offset Door Pivot Set, Top And Bottom, 1-3/4 Inch Thick Door, Max Dr Width 48 In Weighing Up To 800Lbs, UL Listed 3 Hr Fire

The ABH L0147 Lead lined Heavy Weight 3/4 Inch Offset Door Pivot Set is designed for use with 1 3/4 inch thick doors, able to support a maximum door width of 48 inches and weight of up to 800lbs. This top and bottom set is UL Listed for a 3-hour fire rating, providing reliable and secure door operation.

Features:

• Handed – Specify LH or RH

• For use on 1-¾” lead-lined doors

• Maximum door load – 800 pounds

• Maximum door width – 48”

• UL listed for use on 3-hour fire-rated doors - Standard

• Heavy duty bearings
• Stainless steel base material

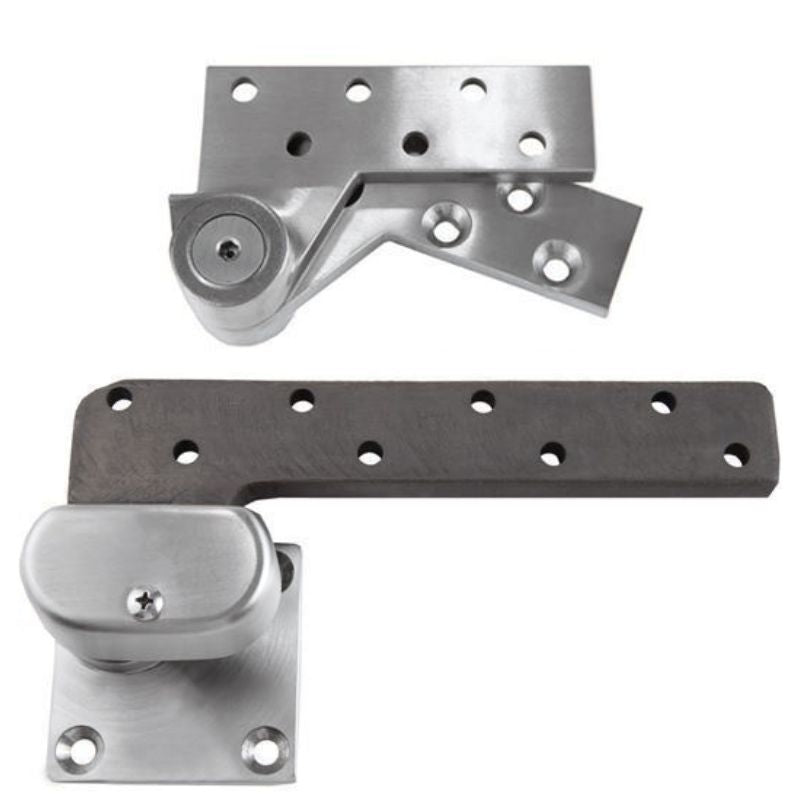

Includes:

• L0180 Top Pivot
  - Frame leaf mortises into the header
  - Door leaf mortises into the top of the door
• L0147 Bottom Pivot
  - Bottom leaf mounts on top of the finished floor
  - Door leaf mortises into the bottom of the door
