Description

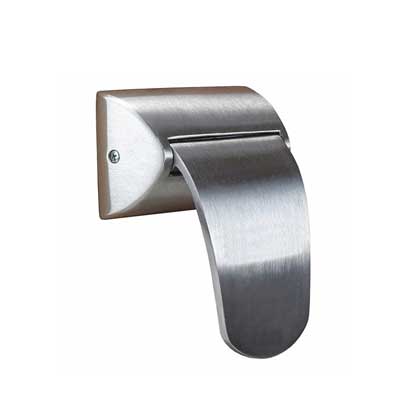

ABH LR6000 2 A US32D Ligature Resistant Cylindrical Latches 2 3/4" Backset, US32D Satin Stainless Steel
LR6000 2 A US32D Ligature Resistant Cylindrical Latches 2 3/4" Backset, Satin Stainless Steel, Trim is mounted using four thru-bolts for maximum stability and Non-handed for installation. The LR6000 Cylindrical latch application passage function 1- ¾" standard door thickness. Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of the door) rated 90 minutes or less, up to 4" x 8" UL Listed in the U.S.A. and Canada
- The new ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
- Cylindrical latch application - passage function
- 1-3/4" standard door thickness (specify if different)
- Meets ADA requirements
- Trim is mounted using four thru-bolts for maximum stability
- One continuous spring provides a smoother operation and an extended life for the unit
- Non-handed for installation and stocking ease
- Trim can be mounted vertical or horizontal (with handles pointing toward hinge edge of the door)
- Handles can be mounted up or down by simply rotating trim 180 °
- UL Listed in the U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 6 lbs
- Patent# 7,258,374 & Additional Patents Pending
