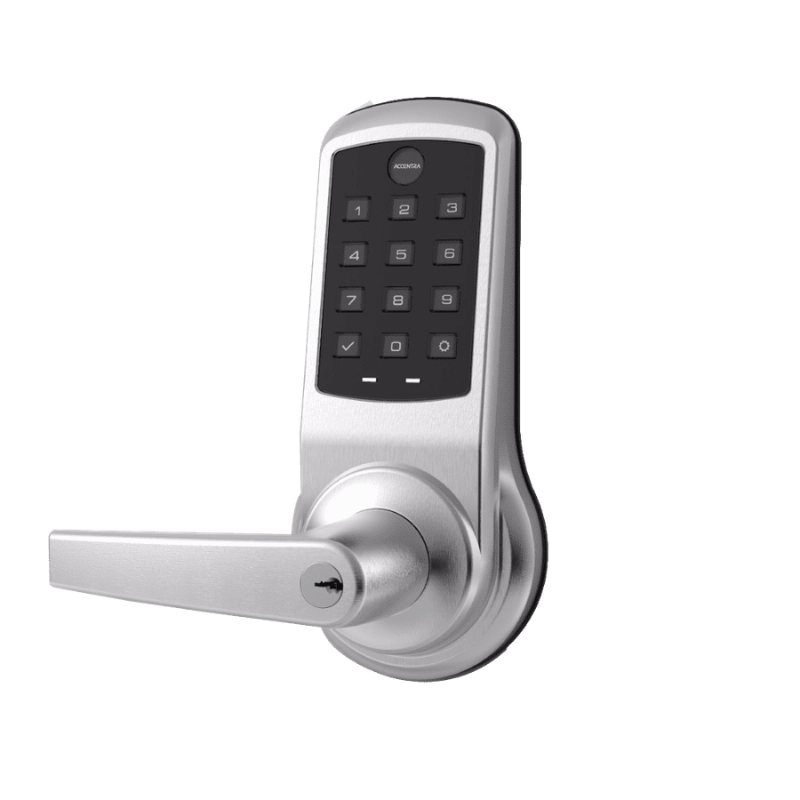

Accentra MO-NTB613-NR-626 NexTouch Generation 3 Cylindrical Lock with Pushbutton Keypad, No Deadbolt With Cylinder Override, Conventional Cylinder, PARA Keyway Keyed Random [2] Keys, Monroe Lever, Grade 1, Non Handed, Satin Chrome Finish
The Accentra NexTouch MO-NTB613-NR-626 cylindrical lock combines Grade 1 durability with straightforward electronic access control for commercial openings. This Generation 3 pushbutton keypad lock features a Monroe lever, non-handed design, and cylinder override with a conventional PARA keyway keyed random with two keys included. Built for keypad access without a deadbolt, it is well suited for offices, schools, healthcare, retail, and other interior or exterior door applications that need dependable credential management with familiar cylindrical lock preparation. Its satin chrome finish completes a clean commercial look, while the standalone platform helps simplify installation and everyday operation.
Features
- Grade 1 cylindrical keypad lock is designed for high-use commercial applications.
- Pushbutton keypad provides standalone electronic access control without a networked system.
- Cylinder override allows keyed entry when needed using a conventional PARA keyway.
- Non-handed construction supports easier field installation on either left- or right-hand doors.
- Monroe lever trim offers a clean, professional appearance for commercial openings.
- Keyed random configuration includes two keys.
- No deadbolt design is ideal for cylindrical lock applications requiring latch retraction by lever operation.
- Generation 3 NexTouch platform supports modern access management in a familiar keypad format.
- Suitable for a wide range of commercial environments including education, healthcare, office, and retail settings.
Functional Details
This NexTouch cylindrical lock uses a pushbutton keypad to control access at the door while retaining a mechanical cylinder override for backup entry. As a standalone electronic lock, it is designed to deliver controlled access without the complexity of a hardwired system, making it a practical choice for retrofit and new commercial openings.
- Available in cylindrical lock and exit trim options
- Weather resistant capacitive touchscreen and pushbutton keypad options
- Supports up to 500 unique PIN codes
- Available with optional Data-on-Card and wireless capabilities
- Non-handed, easy to install and retrofit
Included Components
This keyed random configuration includes the lockset with Monroe lever trim, conventional cylinder override, PARA keyway cylinder, and two keys.
| Manufacturer | Accentra |
| Base SKU | MO-NTB613-NR |
| Product Line | NexTouch Generation 3 |
| Lock Type | Cylindrical Lock |
| Input Type | Pushbutton Keypad |
| Lever Design | Monroe |
| Handing | Non-handed |
| Cylinder Type | Conventional cylinder override |
| Keyway | PARA keyway |
| Keying | Keyed random |
| Keys Included | 2 keys |
| Grade | ANSI/BHMA Grade 1 |
| Unit of Measure | Each |
| Door Application | Commercial cylindrical lock prep openings |
| Limited Warranty | 1 Year limited warranty |
| User Capacity | Up to 500 unique PIN codes |
| Power Supply | 4 AA batteries |
| Battery Life | Up to 80,000 cycles |
| Door Thickness | 1-3/8 in. to 2-1/4 in. |
| Backset | 2-3/4 in. |
| Cross Bore | 2-1/8 in. |
| Edge Bore | 1 in. |
| Latch Front | 1-1/8 in. x 2-1/4 in. |
| Strike | 1-1/4 in. x 4-7/8 in. ANSI strike |
| Latchbolt Throw | 1/2 in. |
| Operating Temperature | -31°F to 151°F (-35°C to 66°C) |
| Weather Resistance | Weather resistant keypad |
| Wireless Capability | Optional |
| Data-on-Card Capability | Optional |
