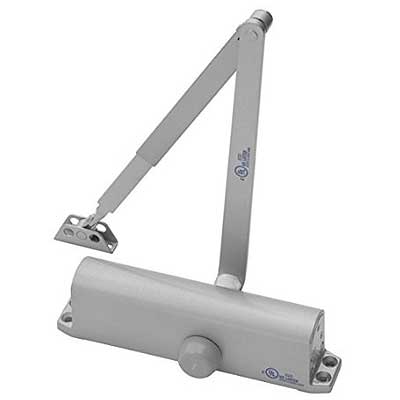

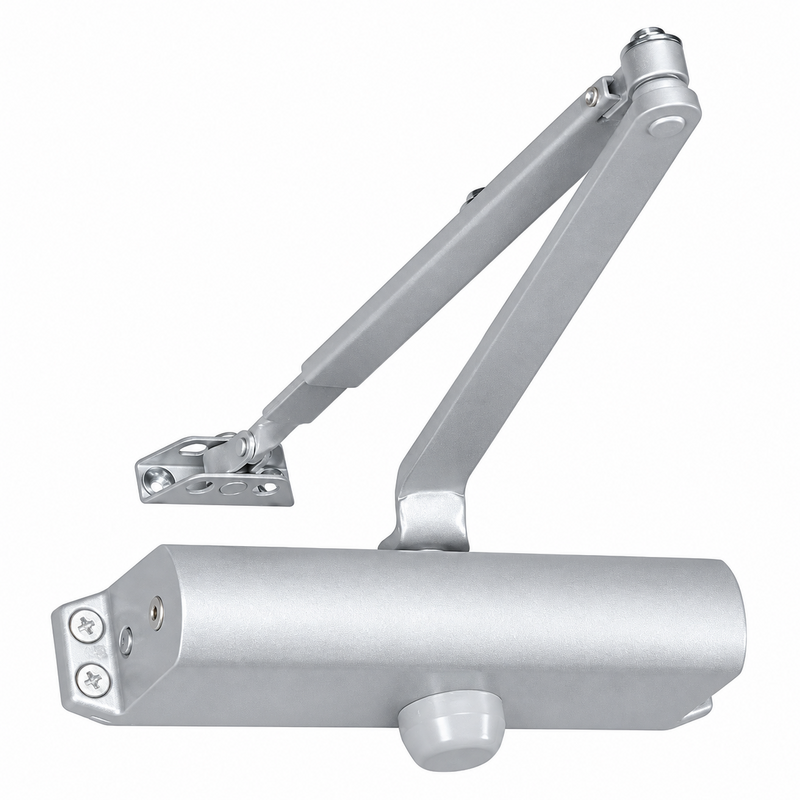

Accentra (Formerly Yale) 1101BF Door Closer, Barrier Free Surface Mounted

The Accentra (formerly Yale) 1101BF is a barrier-free, surface-mounted door closer built for dependable performance in demanding commercial settings. Part of the respected 1100 Series, this closer features an adjustable spring power that allows field adjustment to meet accessibility and life-safety requirements, making it a versatile choice for schools, hospitals, offices, and other high-traffic facilities. Its durable cast iron body and independent valve adjustments for sweep, latch, and backcheck deliver smooth, controlled closing cycles. ANSI/BHMA Grade 1 certified and UL listed, the 1101BF offers the long-term reliability and code compliance that specifiers and facility managers rely on for everyday use.

Features

• Barrier-free design supports accessibility and reduced opening-force requirements.
• Surface-mounted installation for straightforward application on most standard doors.
• Cast iron body provides rugged durability for high-use commercial openings.
• Adjustable spring power allows field tuning to the opening's needs.
• Independent sweep, latch, and backcheck valve adjustments for precise control.
• ANSI/BHMA Grade 1 rating ensures top-tier performance and longevity.
• UL listed for use on fire-rated door assemblies.

Functional Details

The 1101BF is a hydraulic surface closer designed with adjustable spring power so installers can set the appropriate closing force for barrier-free and accessibility applications. Separate hydraulic valves control the door's sweep, latch, and backcheck functions for a smooth, regulated close every time.

• Adjustable spring sizes 1 through 6.
• Separate regulating valves for sweep, latch speed, and backcheck.
• Tri-style mounting: regular, top jamb, and parallel arm.
• Non-handed closer for right- or left-hand doors.

Arm Type Details

The 1101BF is supplied with a standard double-lever arm suitable for regular (pull side), top jamb, and parallel arm (push side) mounting configurations. This tri-mount flexibility lets a single closer adapt to a wide range of door and frame conditions.
