Accentra (Formerly Yale) AU5305LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset- Storeroom Function, AU Lever, Schlage "C" Key Way, US26D/626 Satin Chromium Finish

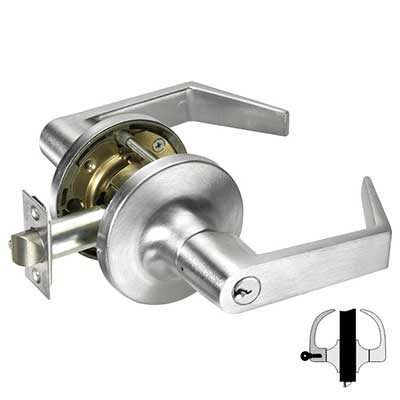

The Accentra (Formerly Yale) AU53075LN 626 is a Grade 2 Medium Duty Cylindrical Lever Lockset with a 2 1/8" bore, and 2 3/4" backset. The AU stands for the Augusta Lever. This 5300LN Series lockset comes in an 05 Storeroom Function. With the Storeroom Function, you always need the key to get back into the door when it closes, but you can always get out from the inside. The cylinder is a Conventional Schlage C fixed Core Keyed Randomly. The finish is a US26D/626 Brushed Satin Chrome Finish.



Vendor ASSA ABLOY
Manufacturer Accentra
SKU AU5305LN 626
Grade Grade 2
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 2, UL Listed
ANSI Number F86
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver
Function
05 Storeroom
Function Family Storeroom
ANSI Function
F86 - Storeroom
Lever/Knob Design AU Augusta Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 380AN
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
