All Accentra Products

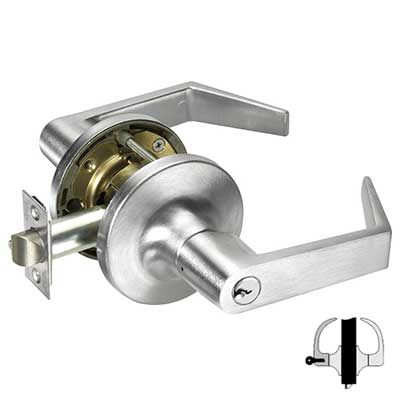

Accentra (Yale) AU5308LN-626 Classroom Function Cylindrical Lock - AU Lever, Schlage "C" Key Way, 626 Satin Chromium Finish Keyed Random

  • SKU: AU5308LN626
AccentraAU5308LN-626
Zoomed view
All Accentra Products

Accentra (Yale) AU5308LN-626 Classroom Function Cylindrical Lock - AU Lever, Schlage "C" Key Way, 626 Satin Chromium Finish Keyed Random

  • SKU: AU5308LN626
  • ✓
    In Stock
    In Stock
Your Price
$282.15/ea

Accentra AU5308LN-626 Classroom Function Cylindrical Lock - 2-3/4" Backset, AU Lever, Schlage "C" Key Way KR, 626 Satin Chromium Finish Keyed Random

Features

  • Available in 3 non-handed lever options: Augusta (AU), Monroe (MO) & Pacific Beach (PB)
  • Features a patented Free Wheeling lever mechanism: when the outside lever is locked, it will rotate freely up and down while remaining securely locked
  • Increased vandal resistance
  • Keying options:
    • Standard cylinders with Schlage ® C and Sargent ® LA keyways
    • Levers that accept interchangeable core cylinders by Best ®, Corbin Russwin, Sargent ®, Schlage ®, Medeco ®, and ASSA ®
    • Levers that accept standard cylinders by Schlage ®
Function 08 Classroom
Function Family Classroom
ANSI Function
F84 - Classroom
Lever/Knob Design Au-Augusta
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Schlage C KR
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 380AN
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock

Specifications

Door Thickness: Locks are pre-assembled for 1-3/8" and 1-3/4" doors (preset at the factory for 1-3/4")
Backset: 2-3/4"
Strike: 4-7/8" ANSI Strike
Functions: Classroom

Certifications

ANSI: ANSI A156.2, 1996 series 4000 Grade 1
ADA: Meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility for the Handicapped
UL: UL-cUL fire label for all functions up to 3-hour doors
Product Cut Sheet
