Description

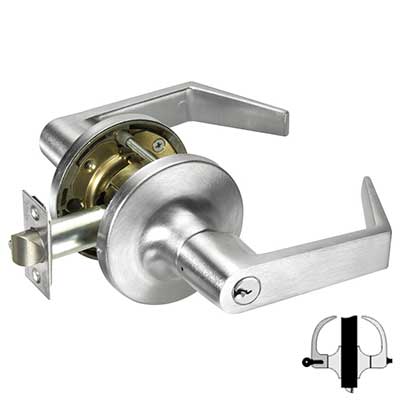

Accentra (Formerly Yale) AU5407LN-626-SC-KD Entry Cylindrical Lock, Augusta Lever, Schlage "C" Key way Keyed Different, 2-3/4" Backset, ASA 4 7/8" Strike, Grade 1, Non Handed, US26D-626 Satin Chrome Finish
The AU5407LN 626 is a Grade 1 Cylindrical Lockset, 2 1/8" bore, and 2 3/4" backset. The AU stands for Augusta Lever, 5400 is the series, and 07 is an Entrance Office Function. The Office Entrance Function has a key on one side and a push button on the inside. The lock comes standard with a Schlage C Conventional Cylinder, Keyed Random, with a 4 7/8" ASA Strike. The finish is a US26D/626 Brushed Chrome Finish.
Product Specs
|
Vendor |
ASSA ABLOY |
| Manufacturer | Accentra |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F109 |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function |
07 Entry Lock |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design |
AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
