All Accentra Products

Accentra (Yale) AU5430LN-626-SC-KD Utility, Asylum or Institutional Cylindrical Lock, Schlage "C" Key way, Satin Chrome

  • SKU: AU5430LN626
Accentra (Yale) AU5430LN-626-SC-KD
Accentra (Yale) AU5430LN-626-SC-KD
All Accentra Products

Accentra (Yale) AU5430LN-626-SC-KD Utility, Asylum or Institutional Cylindrical Lock, Schlage "C" Key way, Satin Chrome

  • SKU: AU5430LN626
$477.00/ea
Available (4‑6 Weeks)
4-6 Weeks Lead Time

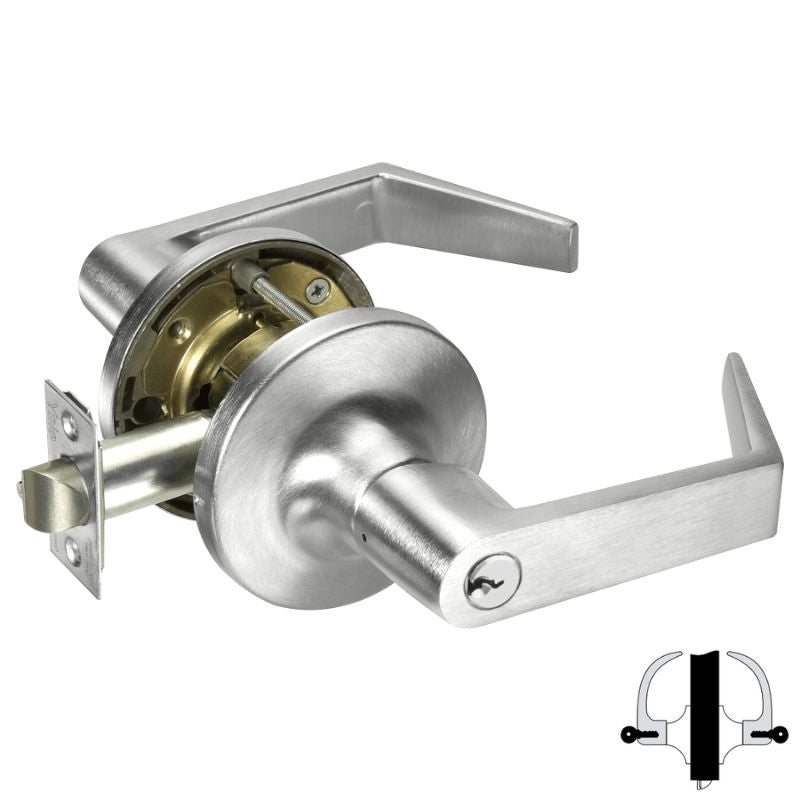

Accentra (Yale) AU5430LN-626-SC-KD Utility, Asylum or Institutional Cylindrical Lock, AU Lever, Schlage "C" Key way Keyed Different,  2-3/4" Backset, ASA 4 7/8" Strike, Non Handed, US26D-626 Satin Chrome Finish

The Accentra (Yale) AU5430LN-626-SC-KD is a versatile cylindrical lock designed for use in utility, asylum, or institutional settings. It features an AU lever and a Schlage "C" key way, and can be keyed different for added security. With a 2-3/4" backset and an ASA 4 7/8" strike, this non-handed lock is suitable for a variety of door setups. Its sleek US26D-626 satin chrome finish adds a professional touch to any space.

Utility, Asylum or Institutional Lock
• Deadlocking latchbolt.
• Latchbolt operated by key in lever from either side.
• Both levers always locked.*

Vendor ASSA ABLOY
Manufacturer Accentra
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 1, UL Listed
ANSI Number F76A
Limited Warranty 7 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver



Function
30 Utility, Asylum or Institutional
Function Family Utility, Asylum or Institutional
ANSI Function
F87 - Utility, Asylum or Institutional
Lever/Knob Design AU Augusta Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 693
Std. Latch Type Beveled Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock

Product Cut Sheet
