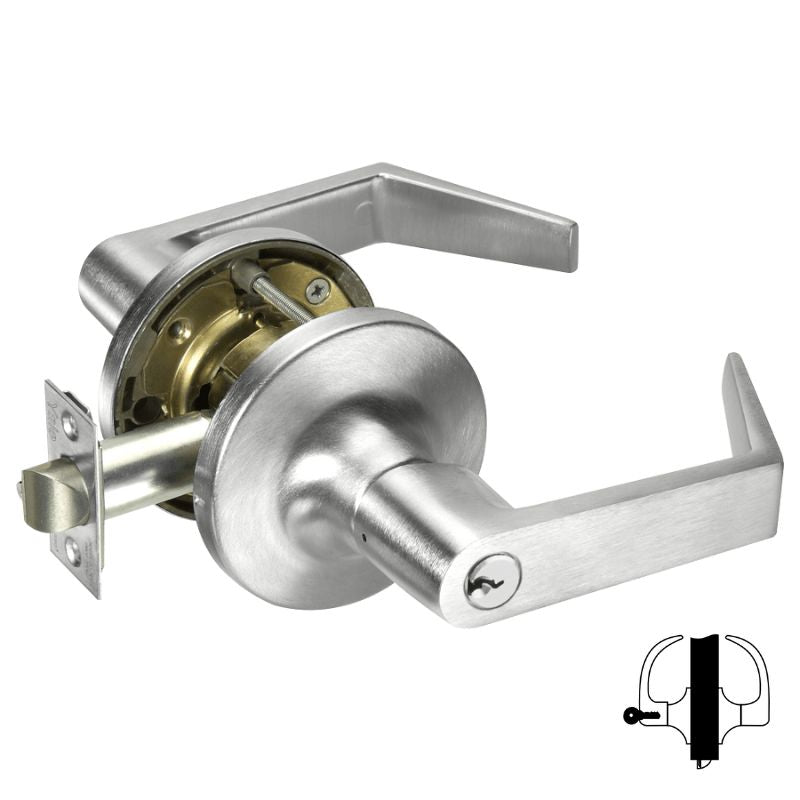

Accentra (Formerly Yale) AU5490LN-REX-12V-626 Fail Safe Electrified Cylindrical Lever Lock, Request to Exit, Augusta Lever, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed, US26D-626 Satin Chrome Finish
Accentra (Formerly Yale) presents the AU5490LN-626, a Fail Safe Electrified Cylindrical Lever Lock. This lock is designed with the Augusta Lever and features a 2 3/4 backset, ASA 4 7/8 strike, and is Grade 1 certified. It is non-handed and finished in US26D-626 Satin Chrome.
Request to Exit (REX) Operating inside lever handle triggers REX switch which can be used to shunt an alarm, monitor egress or release a magnetic lock, etc.
90LN Fail Safe Function
- Power on locks outside lever.
- Inside lever always active.
- The latchbolt is retracted by the key when locked electrically.
- Free Wheeling lever when locked electrically.
Core Options
-
Standard-PARA Key Different PARA Keyway, Keyed Different, [2] Keys
-
Standard-Schlage C Key Different Schlage "C" Keyway, Keyed Random, [2] Keys
-
Yale-LFIC Less Core Yale LFIC Prep Less Core (Large Format Interchangeable Core)
-
B (i.e. B-AU) SFIC (Accepts all Small Format Interchangeable Cores)
-
M (i.e. M-AU) Medeco®, ASSA® LFIC (Large Format Interchangeable Core)
-
SI (i.e. SI-AU) Schlage® LFIC (Large Format Interchangeable Core)
-
R (i.e. R-AU) Corbin® LFIC (Large Format Interchangeable Core)
