Description

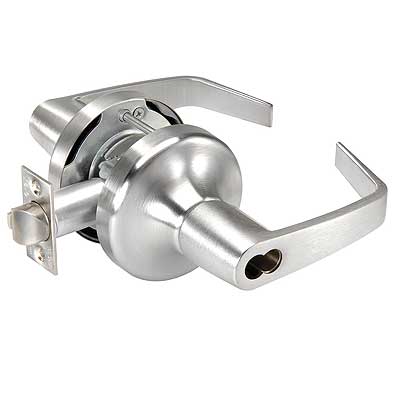

Accentra (Formerly Yale) BAU4705LN626 Storeroom Lever Lockset - Grade 2, AU Lever, Best SFIC Less Core, 626 Satin Chromium Plated
The Accentra B-AU 4705LN 626 is a Grade 1 cylindrical lock, 2 1/8" bore x 2 3/4" backset. This lock is a Storeroom Function meaning key unlocks the lock. Once the door shuts you need the key to get back in, but you can always get out from the inside. B stands for the Sfic Small Format Interchangeable coreless cylinder. The Finish is a US26D/626 Brushed Chrome Finish
Technical Specifications
| Function | 05 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | AU Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6 or 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | B-AU4705LN 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F86 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
