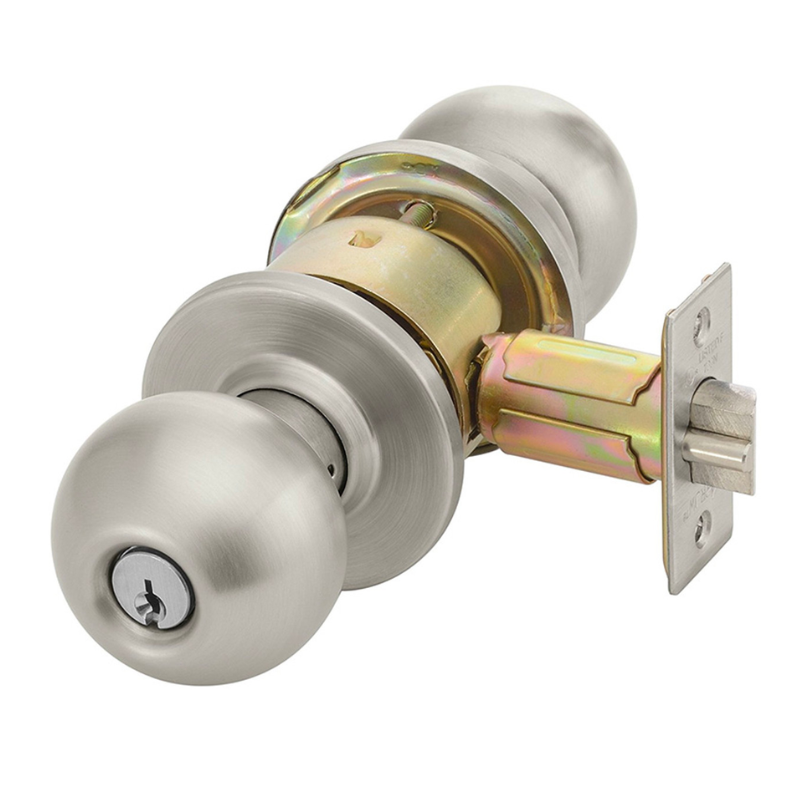

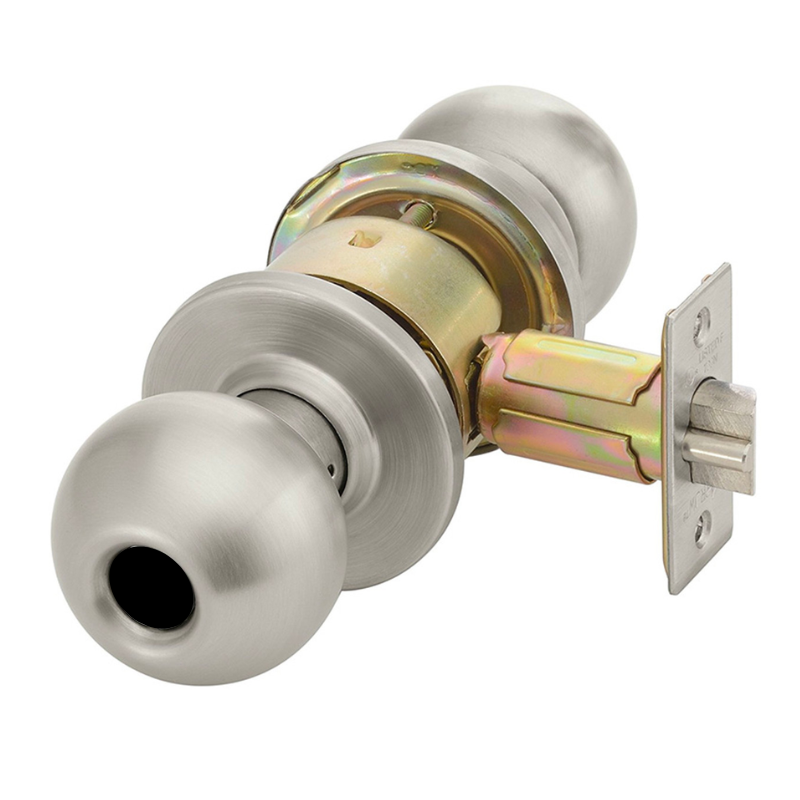

The Accentra (Yale) CA4605-630 is a Grade 2 cylindrical knob lockset built for the daily demands of commercial storerooms and service areas. Featuring the Carolina knob design and a durable Satin Stainless Steel (630) finish, this storeroom function lockset keeps the door securely latched at all times while allowing free egress from the inside. Its non-handed design simplifies installation on either door swing, and it comes standard with a 2-3/4" backset and a 4-7/8" strike. Reliable, keyed security combined with proven mechanical construction makes this lockset a practical choice for offices, schools, healthcare facilities, and other high-traffic commercial environments.
Features
Functional Details
The storeroom function (F86) secures the door for controlled access. The outside knob is always locked and can only be operated with a key, while the inside knob always allows free egress. The latch retracts by key from the outside or by turning the inside knob at any time.
| Manufacturer | Accentra (Yale) |
| SKU | CA-4605 |
| Series | 4600LN Cylindrical Lock |
| Function | Storeroom |
| Knob Style | Carolina (CA) |
| Grade | ANSI/BHMA Grade 2 |
| Handing | Non-Handed |
| Finish | Satin Stainless Steel (630) |
| ANSI Function | F86 |
| Unit of Measure | Each |
| Origin | USA |
| Limited Warranty | Manufacturer Limited Warranty |
| Backset | 2-3/4" (standard) |
| Strike | 4-7/8" ANSI strike |
| Latchbolt Throw | 1/2" |
| Door Thickness Range | 1-3/8" to 1-3/4" |
| Bore Diameter | 2-1/8" |
| Edge Bore | 1" |
| Cylinder Type | 6-pin standard keyway |
| Rose Diameter | 3-9/16" |
| Knob Projection | 2-3/8" |
| ANSI Standard | ANSI/BHMA A156.2 |
| Grade | Grade 2 |
