Description

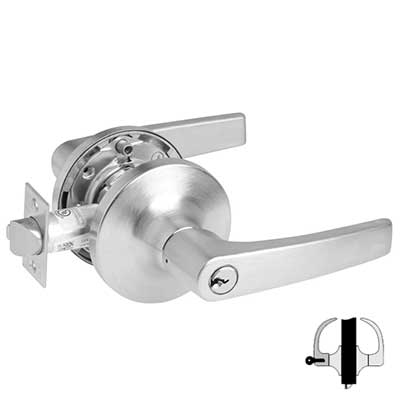

Accentra MO5308LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset,- Classroom Function, MO Lever, Schlage "C" Key Way, Keyed Random, 626 Satin Chromium Plated
The Accentra (Formerly Yale) MO5308LN-626 is a grade 2 cylindrical lock that has a 2 1/8" bore, a 2 3/4" backset. The MO stands for Monroe lever, 08 is a classroom function key locks/unlocks lever always free passage from the inside out. 626/US26D is a Satin Chrome Finish. These come Schlage C Conventional core keyed random with 2 change keys per lock.
Technical Specifications
| Function |
08 Classroom |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design | MO Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380AN |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
