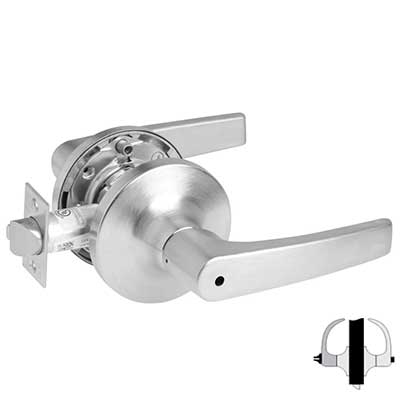

Accentra (Yale) MO5425LN-626 Privacy Cylindrical Lever Lock, Non-Keyed, Satin Chrome

  • SKU: MO5425LN626
Accentra (Formerly Yale) MO5425LN-626
Accentra (Formerly Yale) MO5425LN-626
All Accentra Products

Accentra (Yale) MO5425LN-626 Privacy Cylindrical Lever Lock, Non-Keyed, Satin Chrome

  • SKU: MO5425LN626
$363.36/ea
Available (5‑6 Weeks)
5-6 Weeks Lead Time

Accentra (Formerly Yale) MO5425LN-626 Privacy Cylindrical Lever Lock, Non-Keyed, Monroe Lever, 2-3/4" Backset, 4-7/8" Strike, Grade 1, Non Handed, US26D-626 Satin Chrome Finish

The MO5425LN 626 is a Grade 1 Cylindrical Lever Lockset. The lock is a 5400 series and the 25 is a Privacy Function for lavatory or other privacy doors. Either lever operates a latch bolt (except when the outside lever is locked by the inside pushbutton) Button automatically releases by turning the inside lever or closing the door. The door can be unlocked, when necessary, by operating the outside turn button. The MO5402LN has a 2 1/8" bore 2 3/4" backset. This lock is non-keyed and comes in a US26D/626 Brushed Chrome Finish.

Accentra 5425LN Function
Vendor ASSA ABLOY
Manufacturer Accentra
SKU MO5425LN 626
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 1, UL Listed
Limited Warranty 7 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver


Function
25 Privacy Lock
Function Family Privacy
Lever/Knob Design MO Monroe Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 693
Std. Latch Type Beveled Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
