Description

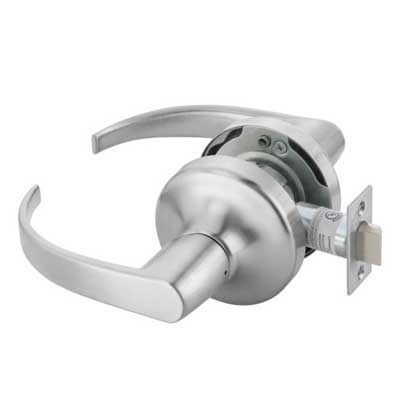

The Accentra PB4701LN-626 Passage Function Cylindrical Lever Latch set is Grade 1 Heavy Duty and available in 626 Satin Chrome Finish.
Accentra PB4701LN-626 Series grade 1 Passage cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra PB4701LN-626 Passage lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind
Features
- Available in 3 non-handed lever options: Augusta (AU), Monroe (MO) & Pacific Beach (PB)
- Freewheeling trim
- Longer through-bolts through the chassis provide greater stability and prevent rotation
- 3-1/2" roses cover ANSI/BHMA hollow metal door cutout
Technical Specifications
| Door Thickness: | 1-3/4" Standard |
| Backset: | 2-3/4" ONLY |
| Strike: | ANSI 1-1/4" standard |
| Functions: | Passage |
| Latchbolt: | Stainless steel with 1/2" throw |
| Warranty: | 7-Year Limited Warranty |
Accentra PB4701LN-626 Certifications
| ANSI/BHMA: | Grade 1 |
| UL-cUL: | All locks listed for use on fire doors have a rating up to and including 3 hours. |
| ADA: | Meets A117.1 Accessibility Code |
Document Center
