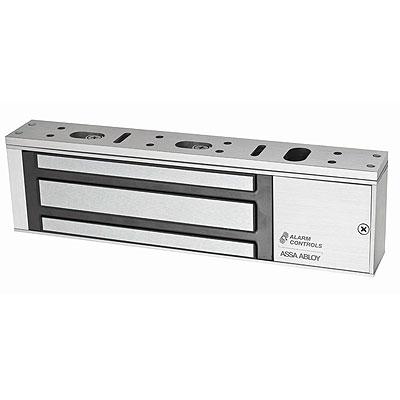

Alarm Controls 1200S Magnetic Lock 628 Aluminum Finish

The Alarm Controls 1200S Magnetic lock has a 1200 lbs holding force and comes in US28 Clear anodized Aluminum finish. The Alarm Controls 1200S can be used with any access control system and has a limited lifetime warranty.

• 1200 lbs holding force
• Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
• Armature size: 7-3/8" L x 2-3/8" H x 9/16" W
• Operates on 12 or 24 VDC, switch selectable
• Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
• Operating temperature: +14 to +131F [-10 to +55C]
• UL 10C, UL 294 and ULC-S104 (Canada) listed

• Product Features

  • Instant release, no hysteresis
  • Can be used with any access control system
  • Self-drilling TEC screws
  • Built-in arc suppression
  • E-Z mount system, no special tools required
  • Non-aluminum parts are plated to resist corrosion
