Arrow BM11LB Lock Body Only, Function 11-Apartment/Front Door, ANSI Function F12 - Entry Office. Non-Handed, Field Reversible.
Arrow BM Series Lever Mortise Locks are intended for heavy-duty use in schools, hospitals and commercial buildings where security, durability, and low maintenance are required.

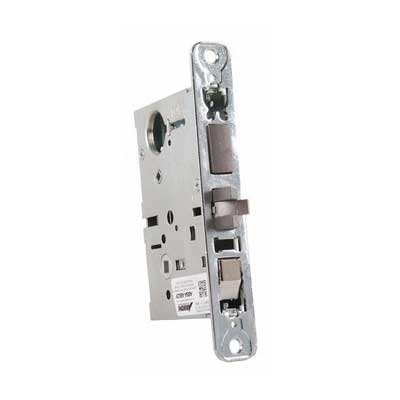

Arrow BM11LB Lock Body Only.
Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard. Optional door thickness available; consult factory.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
