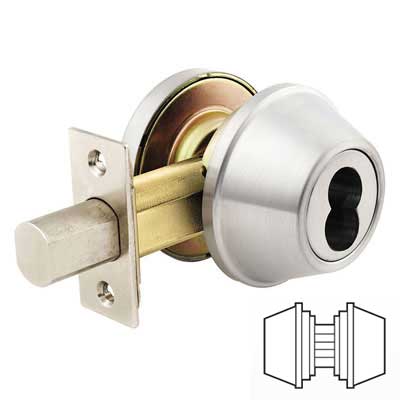

Arrow DBX62 32D IC Deadbolt, Double Cylinder, SFIC Prep, Less Core, Adjustable Backset, US32D-630 Satin Stainless Steel
The DB Series is a Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low profile package. It is ideal for commercial common areas and residential use.
Designed to meet ANSI A156.36, Auxiliary Locks, Grade 2
Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.
Function – Double Cylinder.
Housing – Solid zinc cylinder housing.
Latch Bolt – 1" (25mm) throw brass deadbolt with hardened,
free spinning, steel pin insert.
Deadbolt Front – 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (27.5mm) mortise.
Strike – 1/32" (2.3mm) steel with wood frame reinforcer.
Cylinder – Solid brass, drilled for 6 pins pinned to 5. Supplied
with 2 nickel plated brass keys per keyed lock.
Cylinder Options – Accepts 6 or 7 pin, small format interchangeable cores. Supplied less core. Will accept Best or Falcon type cores Finishes – 605/613/630.
