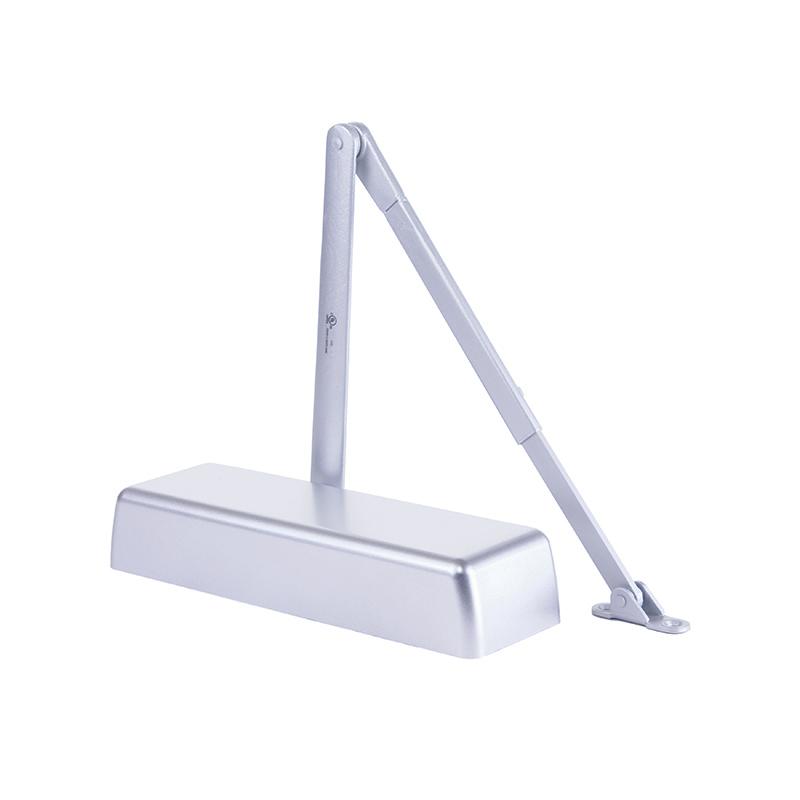

DCN516 689 Surface Door Closer, Hydraulic Tri-Mount Push or Pull Side Mounting, Double Lever Arm with PA Bracket, Plastic Cover, Size 1 to 6, Grade 1, Aluminum Painted Finish, Non-Handed.
The Arrow DCN500 Series Heavy Duty Surface Door Closers are ideal for Institutions or other high traffic applications.
The DCN500 is designed for end-users looking for value and versatility in a rugged design making this Series suitable for a wide variety of applicationsFeatures:
DCN516 689 Surface Door Closer
Heavy-duty cast iron body.
Hardened steel rack and pinion.
High tensile steel springs.
Staked valves
Two non-critical adjusting valves sweep and latch) control closing speed.
Backcheck intensity valve.
All temperature fluid.
Full plastic cover standard.
Non-handed for regular, top jamb, and parallel arm mount applications.
Supplied with fully threaded self reaming/tapping screws, machine nuts and thru-bolts for 1-3/4" thick doors.
DCN5xx-1 Series door closers are supplied with a hold-open arm.
DCN5xx-2 has a heavy-duty parallel arm with a stop feature for door openings between 90° and 110°.
DCN5xx-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°.
Packaging: one per box and four boxes per carton.
10 year limited warranty.
Finishes:
Aluminum (689), Specify AL
Dark Bronze (690), Specify DBZ
Sizes (Adjustable):
DCN516 closers are adjustable for spring sizes 1 through 6
Certification:
UL/cUL listed.
UL10C listed for positive pressure to comply with UBC-72 (1997).
Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
