Arrow GL82-SR-26D-CS Storeroom Lever Lock, Sierra Lever, Conventional Cylinder, Schlage C Keyway, Satin Chrome Finish

  • SKU: GL82SR26DCS

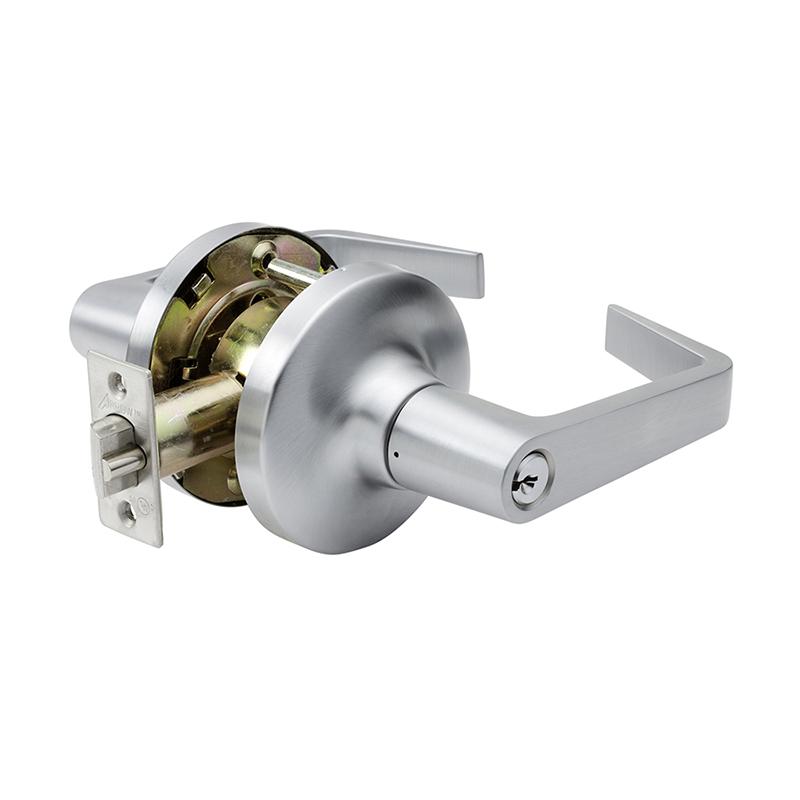

Arrow GL82SR 26D CS Storeroom Lever Lock
Arrow GL82SR 26D CS Storeroom Lever Lock
All ARROW Products

Arrow GL82-SR-26D-CS Storeroom Lever Lock, Sierra Lever, Conventional Cylinder, Schlage C Keyway, Satin Chrome Finish

  • SKU: GL82SR26DCS
$310.25/ea
In Stock
In Stock

The Arrow GL82-SR-26D-CS is a Storeroom Function Lever Lock, with a Siera Lever, has a Conventional Cylinder with an Schlage "C" Keyway, has a  2 3/4" Backset, a 4 7/8" Strike, and comes in Satin Chrome Finish.

Storeroom or Closet - F86

  • Outside lever always rigid
  • Latchbolt operated by key in outside lever, or by turning inside lever

The Arrow GL Series is a grade 1 heavy-duty Cylindrical lever lock that is ADA-compliant.



Manufacturer Arrow
SKU GL81-SR-26D
Grade Grade 1
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type BHMA A156.2, Series 4000, Grade 1, UL Listed
ANSI Number F109
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver



Technical Specs

Function 82  Storeroom
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-9/16" Rose Diameter
Rose/Escutcheon Dimensions 3-9/16"
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway Schlage C Keyway
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number G71
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
