Arrow MLX33-SR-26D-IC Asylum Lever Lock, Sierra Lever, SFIC Prep, Less Core, Non-Handed, Satin Chrome

  • SKU: MLX33SR26DIC

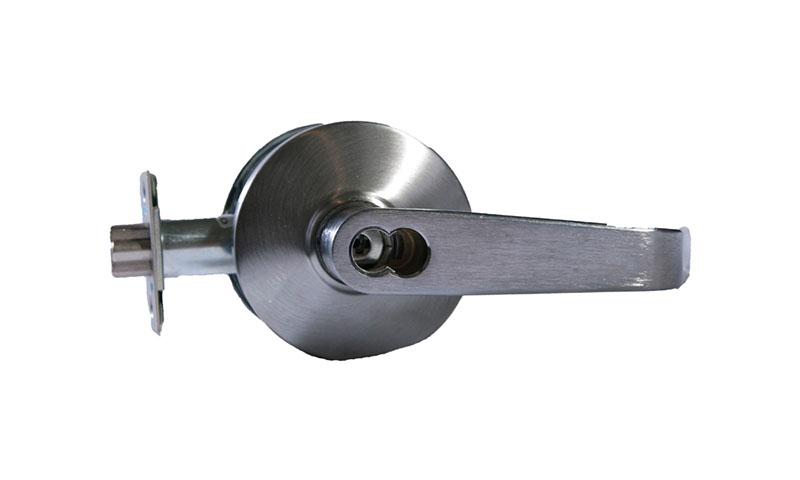

Arrow MLX33 SR 26D IC Asylum Lever Lock
Arrow MLX33 SR 26D IC Asylum Lever Lock
All ARROW Products

Arrow MLX33-SR-26D-IC Asylum Lever Lock, Sierra Lever, SFIC Prep, Less Core, Non-Handed, Satin Chrome

  • SKU: MLX33SR26DIC
$234.28/ea
In Stock
In Stock

The Arrow MLX33-SR-26D IC is an Asylum Lever Lock, with a Sierra Lever, is SFIC Prepped, Sold Less Core, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 2 and comes in Satin Chrome finish.

Utility, Asylum, Institutional - F87

  • Rigid lever
  • Deadlocking latchbolt operated by key inside or outside
  • Handle inside and outside are inoperative at all times

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications. The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Manufacturer Arrow
SKU MLX33-SR-26D-IC
Grade Grade 2
Installation Commercial
Origin South Korea
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number A156.2, Series 4000, Grade 2
Restrictions None
BAA Qualified No
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver
Function 33 Asylum
ANSI Function F87 - Asylum
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-11/32" Rose Diameter
Cylinder Type SFIC Prep Less Core
Num Pins 6 or 7
Handing Non-Handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Dust Box None
Screws Combination
Product Type Cylindrical Lock
Product Cut Sheet
