Arrow MLX87-SR-26D-CS Classroom Lever Lock, Sierra Lever, Key in Lever Cylinder, Schlage C Keyway, Non-Handed, Satin Chrome

  • SKU: MLX87SR26DCS

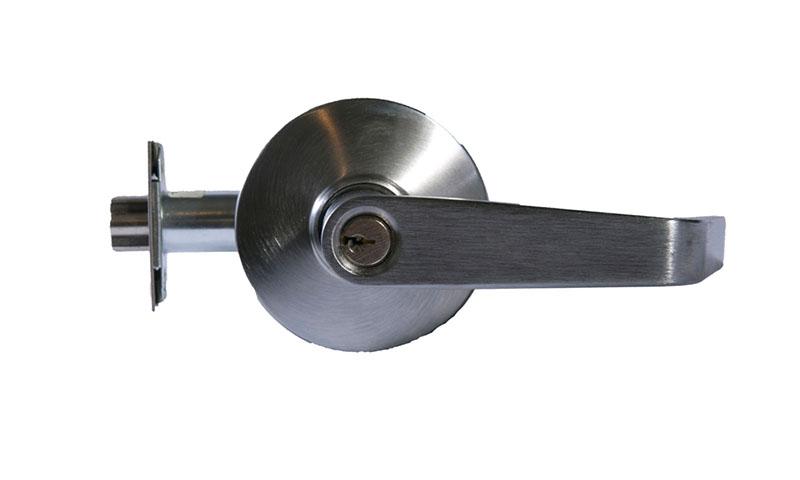

Arrow MLX87 SR 26D CS Classroom Lever Lock
Arrow MLX87 SR 26D CS Classroom Lever Lock
All ARROW Products

Arrow MLX87-SR-26D-CS Classroom Lever Lock, Sierra Lever, Key in Lever Cylinder, Schlage C Keyway, Non-Handed, Satin Chrome

  • SKU: MLX87SR26DCS
$186.47/ea
In Stock
In Stock

The Arrow MLX87-SR-26D-CS is a Classroom Lever Lock, with an S Lever, an R Rose, has a Key in Lever Cylinder, a Schlage C Keyway, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 2 and comes in a Satin Chrome finish.

Classroom - F84

  • Latchbolt operated by lever either side except when key outside locks outside lever
  • Inside lever always free
  • Key outside locks/unlocks outside lever only

The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications. The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Manufacturer Arrow
SKU MLX87-SR-26D-SC
Grade Grade 2
Installation Commercial
Origin South Korea
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number A156.2, Series 4000, Grade 2
Restrictions None
BAA Qualified No
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver
Function 87 Classroom
ANSI Function F84 - Classroom
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-11/32" Rose Diameter
Cylinder Type Key in Lever Cylinder
Keyway Schalge C Keyway
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-Handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bore Hole Diameter 2-1/8"
Std. Strike Number 306
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Dust Box None
Screws Combination
Product Type Cylindrical Lock
Product Cut Sheet
