Description

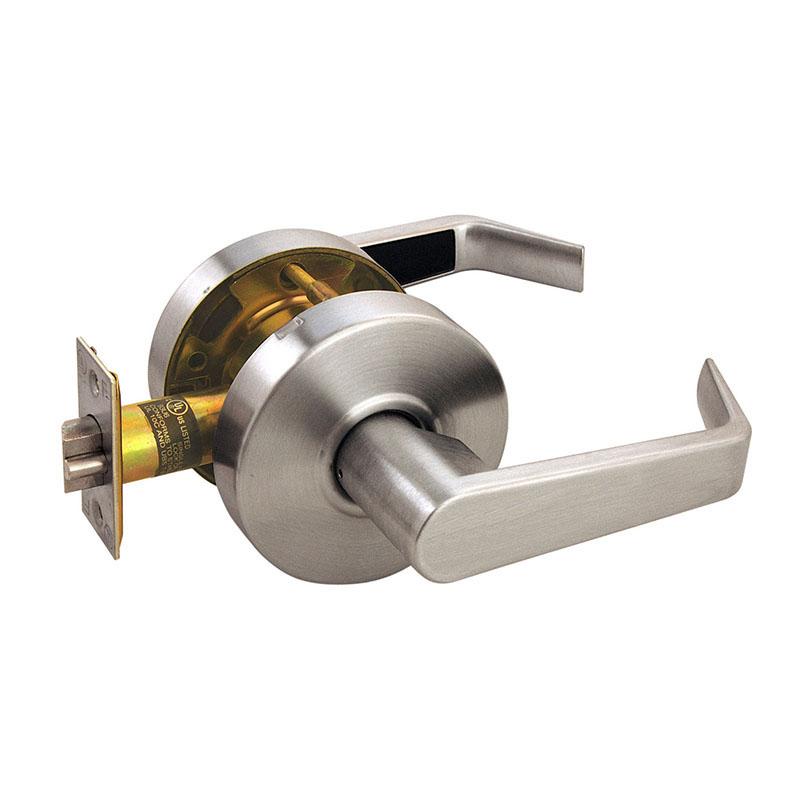

Arrow RL01-SR-26D, Passage Cylindrical Lock, Sierra Lever, Non-Keyed, 2 3/4 BS, 4 7/8" Strike, Grade 2, 626 Satin Chrome Finish, Non-handed.
The RL Series offers removable through bolts and a wide variety of designs.
The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.
Passage, Closet - F75
- Latchbolt operated by lever either side
| Technical Specs | |
| Function |
01-Passage |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design |
SR - Sierra Lever |
| Lever/Knob Design Family | Return Lever |
| Rose/Escutcheon Design |
3-3/8" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | R73 |
| Std. Latch Type | Spring latch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | R62 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
