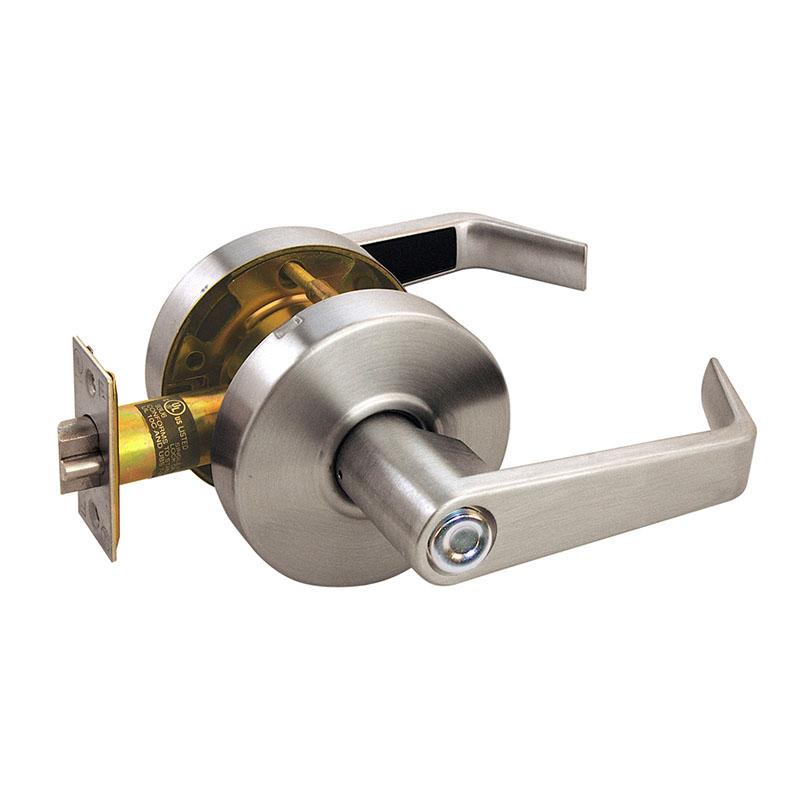

Arrow RL02-SR-26D Privacy Lever Lock, Sierra Lever, Non-Keyed, Non-Handed, Satin Chrome

  • SKU: RL02SR26D
Arrow RL02 SR 26D Privacy Lever Lock
Arrow RL02 SR 26D Privacy Lever Lock
All ARROW Products

Arrow RL02-SR-26D Privacy Lever Lock, Sierra Lever, Non-Keyed, Non-Handed, Satin Chrome

  • SKU: RL02SR26D
$108.36/ea
In Stock
In Stock

The Arrow RL02-SR-26D is a Privacy Lever Lock, with a Sierra Lever, is Non-Keyed, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 1 and comes in Satin Chrome.

Privacy Bath/Bedroom - F76A

  • Rigid lever
  • Latch operated by lever either side except when outside lever is locked by pushing inside button
  • Outside lever unlocked by turning inside lever, using emergency key, or closing door
  • Inside lever always operates latch

The RL Series offers removable through bolts and a wide variety of designs.  The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes, and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.

Manufacturer Arrow
SKU RL02-SR-26D
Grade Grade 2
Installation Commercial
Origin Taiwan
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2 Series 4000, Grade 2, UL Listed
ANSI Number F76A
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver
Function 02 Privacy
Function Family Privacy
ANSI Function F76A - Privacy
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Return Lever
Rose/Escutcheon Design 3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number R73
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number R62
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
