Arrow RL12SR-10-CS Storeroom Lever Lock, Conventional Cylinder, Schlage C Keyway, Non-Handed, Satin Bronze

  • SKU: RL12SR10CS

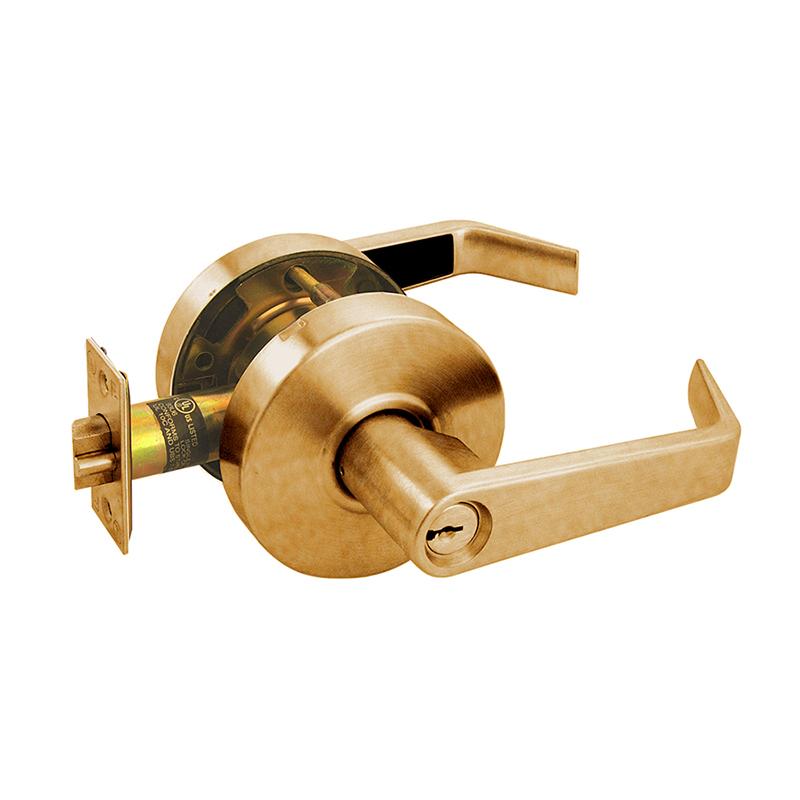

Arrow RL12SR 10 CS Storeroom Lever Lock SR Lever Satin Bronze
Arrow RL12SR 10 CS Storeroom Lever Lock SR Lever Satin Bronze
All ARROW Products

Arrow RL12SR-10-CS Storeroom Lever Lock, Conventional Cylinder, Schlage C Keyway, Non-Handed, Satin Bronze

  • SKU: RL12SR10CS
$136.74/ea
In Stock
In Stock

The Arrow RL12SR-10-CS is a Storeroom Lever Lock, with a Sierra Lever, has a Conventional Cylinder, with a Schlage C Keyway, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 2 and comes in Satin Bronze finish.

Storeroom or Closet - F86

  • Rigid lever
  • Outside lever always rigid
  • Latchbolt operated by key in outside lever, or by turning inside lever

The RL Series offers removable through bolts and a wide variety of designs.  The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes, and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.

Manufacturer Arrow
SKU RL12-SR-10-CS
Grade Grade 2
Installation Commercial
Origin Taiwan
Unit of Measure Each
Base Material Bronze
UL Listing Type ANSI A156.2 Series 4000, Grade 2, UL Listed
ANSI Number F86
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish 612/US10
Finish Description Satin Bronze
Finish Family Matte Bronze
Function 12  Storeroom
Function Family Storeroom
ANSI Function
F86 - Storeroom
Lever/Knob Design Sierra Lever
Lever/Knob Design Family Return Lever
Rose/Escutcheon Design
3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type
Conventional Cylinder
Num Pins 6
Std. Keyway Schlage C Keyway
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number R71
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number R62
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
