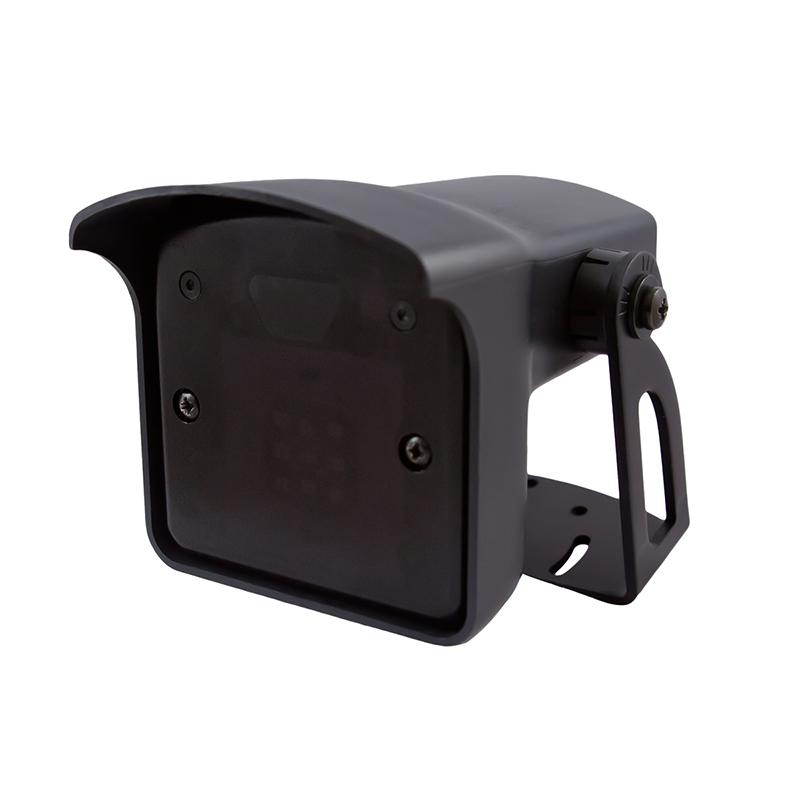

BEA 10FALCON Motion sensor, 11.5 ft. to 23 ft. mounting height, 33 ft. of pre-wired cable, multiple detection options, 12 to 24 V AC/DC

BEASKU: 10FALCON

Price:
Sale price$451.18
In Stock

Description

BEA 10FALCON Motion sensor, 11.5 ft. to 23 ft. mounting height, 33 ft. of pre-wired cable, multiple detection options, 12 to 24 V AC/DC, Standard Mounting Heights.

10FALCON BEA Microwave Sensor Motion sensor, 11.5 ft. to 23 ft. mounting height, 33 ft. of pre-wired cable, multiple detection options, 12 to 24 V AC/DC BEA's Falcon EX combines a microwave activation sensor with an explosion-proof / flame-proof housing, which is ideal for use in unique environments such as chemical manufacturing, petroleum refining, and agriculture.


MOTION SENSOR FOR INDUSTRIAL DOORS, GATES & WARNING INDICATION
BEA’s FALCON FAMILY of sensors is the premier microwave activation solution for indoor and outdoor industrial applications. The family includes the FALCON, FALCON XL (extra-low mount), and FALCON WIDE (for wide detection areas).

BEA’s FALCON FAMILY is ideal for automatic industrial doors, vehicle gates/barriers, vehicle detection, loading docks, or any other industrial application where motion detection is required.

Housed in a NEMA 4 rated enclosure, the FALCON FAMILY is designed to operate in harsh environments.

TECHNICAL SPECIFICATIONS
Technology
Radiated Frequency
Transmitter Radiated Frequency
Radiated Power Density
Microwave Doppler Radar
24.150 GHz
< 20 dBm EIRP
< 5 mW / cm²


Detection Mode Motion
Detection Zone
FALCON
FALCON XL
FALCON WIDE
13’ × 16’ @ 16’
13’ × 6 1/2’ @ 8 1
⁄5’
30’ × 11’ @ 21’
Typical at 30° and field size 9


Tilt Angles 0 – 180°
Output
Max. Contact Voltage
Max. Contact Current
Max. Switching Power
Relay (free of potential change-over contact)
42 VAC / VDC
1 A (resistive)
30 W (DC); 60 VA (AC)


Minimum Detection Speed 2 in / s*


Mains Frequency 50 – 60 Hz


Supply Voltage 12 – 24 VAC; ±10%
12 – 24 VDC; 30% / -10%
Power Consumption < 2 W


Mounting Height
FALCON
FALCON XL
FALCON WIDE
11 1/2 – 23’
6 1/2 – 11 1/2’
11 1/2 – 21’


Dimensions 3 3/4“ (W) × 4“ (H) × 5“ (L)
Material ABS & Polycarbonate
Temperature Range -22 – 140 ºF
Degree of Protection IP65
Norm Conformity EMC: 2004 / 108 / EC
