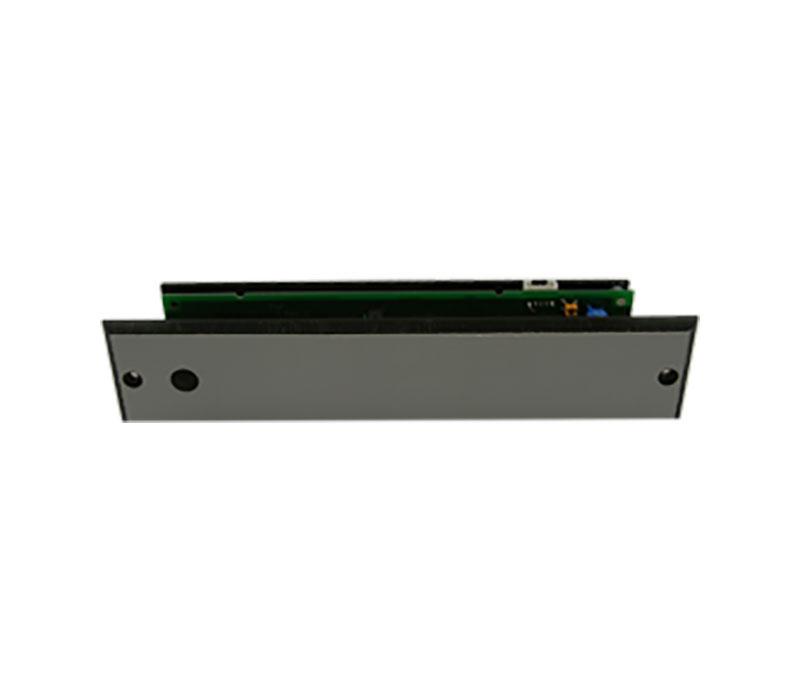

BEA 10FOCUS2 Focus Family Recess-Mounted Active Infrared Presence Sensor, Multi-Purpose Sensor, Adjustable Detection Range of 2-8 Feet, 12/24 VAC/DC

  • SKU: 10FOCUS2

BEA 10FOCUS2 Focus Family Recess-Mounted Active Infrared Presence Sensor, Multi-Purpose Sensor, Adjustable Detection Range of 2-8 Feet, 12/24 VAC/DC

  • SKU: 10FOCUS2
Sale price$324.97/ea
In Stock
In Stock
Visa Mastercard American Express Discover Shop Pay Apple Pay

BEA 10FOCUS2 Focus Family Recess-Mounted Active Infrared Presence Sensor, Multi-Purpose Sensor, Adjustable Detection Range of 2-8 Feet, 12/24 VAC/DC

10FOCUS2 BEA Sensor Packages Focus Family Recess-Mounted Active Infrared Presence Sensor, Multi-Purpose Sensor, Adjustable Detection Range of 2-8 Feet, 12/24 VAC/DC Focus Family Recess-Mounted Active Infrared Presence Sensor, Multi-Purpose Sensor, Adjustable Detection Range of 2-8 Feet, 12/24 VAC/DC



BEA’s FOCUS FAMILY consists of focused active infrared-based presence sensors designed to effectively detect people and objects. These compact sensors can be used in a variety of applications where space may be limited or additional detection is required to complement pre-installed sensors, such as on revolving doors where pinch-zone protection is needed.

The FOCUS 2 offers the same protection as the FOCUS but can be recess mounted.

The SMART FOCUS provides internal and external self-monitoring. Single-button setup ensures easy installation in most common applications.

The FOCUS FAMILY can be used on revolving doors, drive-thru windows, and industrial applications such as gate and access control.

Monitoring Capable
SMART FOCUS is fully monitored (not the FOCUS or FOCUS 2)
Perfect For Activation Of Small Windows / Pass-Thru
Ideal for drive-thru / pass-thru applications
Ideal For Gate And Barriers
Horizontal mount for use in gate and barrier applications

Low Profile Detection
Low profile, recessed-mount enables FOCUS 2 and SMART FOCUS to
protect pedestrians from contact with the moving door

10FOCUS & 10FOCUS2
Technology Focused Active Infrared
Detection Mode Presence
Power Supply 24 VAC / VDC ±10%
Current Consumption 60 mA (On); 30 mA (Off)
Output Interface; Relay Relay; max. contact rating is 1 A @ 30 V (resistive)
Detection Range 0 – 8 1⁄5’
Distance Adjustment 2 – 8’, rotating cam with linear adjustment
Detection Time < 50ms
Detection Signal Duration Infinite Presence Detection
LED Indicator Green No Detection
Operating Temperature Range -30 – 140 °F
Connection to a controller 5-conductor cable
