Description

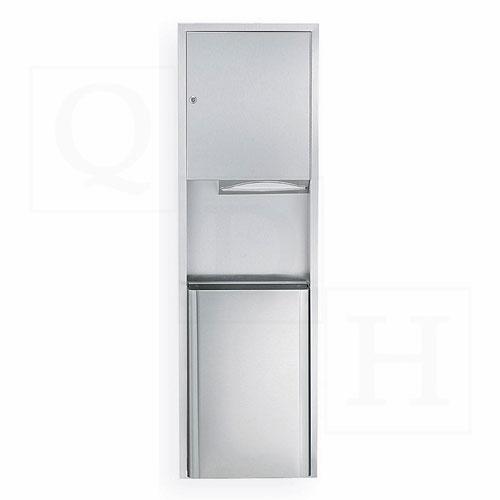

Bradley 234-11 Medium Capacity Towel Dispenser 12 Gallon Waste Surface Mounted, Model 234-11: Surface-Mounted (projects 8-25/32")
The Bradley Surface-Mounted combination towel dispenser and waste receptacle shall be fabricated of 22-gauge stainless steel with exposed surfaces in satin finish. Warp-free towel cabinet door equipped with piano hinge and secured by tumbler lock. Towel dispenser capacity 800 multi-fold or 600 C-fold towels. Removable 12 gal. stainless steel waste receptacle. Reusable vinyl liner is optional.
Features
- Satin finish Stainless Steel
- Holds 800 multi-fold or 600 C-fold paper towels
- 12 gallon waste capacity
- Surface-Mounted
- BradEX ®
Specifications
| Materials: |
Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with 1/4" return Door: 18 gauge stainless steel. Warp resistant, with full length piano hinge and tumbler lock keyed like other Bradley units Towel Dispenser: 22 gauge stainless steel. Rolled edge on dispenser opening Waste Receptacle: Heavy duty 22 gauge stainless steel. All welded construction. Secured to cabinet with tumbler lock keyed like other Bradley units Liner: (optional) heavy duty stitched vinyl coated nylon. Part # P11-004 Optional Hinged Cover: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy duty stainless steel piano hinge Optional Push-Flap Door: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy duty stainless steel piano hinge. Self-closing door is embossed PUSH |
| Operation: | Towel dispenser holds multi-fold or C-fold towels without use of special adapter. Receptacle removable for servicing by unlocking waste container |
| Installation: | Verify all rough-in dimensions prior to installation. Surface-mounted units must have holes drilled by installer. Mounting screws are included |
| Size: | 17-1/8" (435mm) w x 56" (1422mm) h x 3-13/16" (97mm) d |
| Capacity: |
Towel Dispenser 800 multi-fold or 600 C-fold paper towels Waste Container 12 gal. (1.6 cu. ft.) |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
