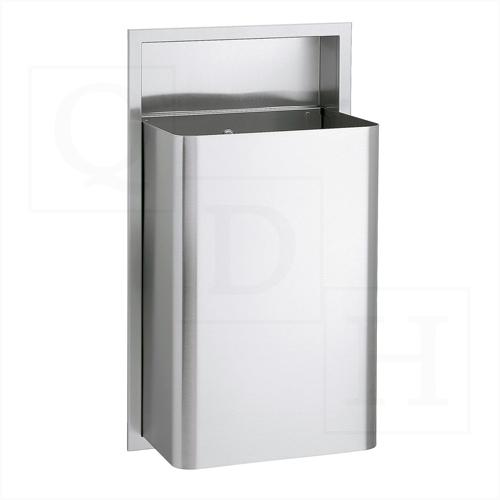

Recessed waste receptacle shall be fabricated of heavy gauge stainless steel with seamless exposed surfaces in satin finish. Removable 18-gallon stainless steel waste receptacle. Heavy-duty vinyl liner is optional. Receptacle secured to cabinet with tumbler lock
- Satin finish Stainless Steel
- BradEX ®
|Materials:|| Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One piece seamless construction, 1" wide with 1/4" return. |
Cabinet: heavy gauge stainless steel. All welded construction.
Waste Container: 22 gauge stainless steel. All welded construction. Secured to cabinet with tumbler lock keyed like other Bradley units.
Liner: (optional) heavy-duty stitched vinyl-coated nylon.
Hinged Cover:(optional) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge.
Push Flap Door:(optional) fabricated of 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy duty stainless steel piano hinge. Self-closing flap door is embossed PUSH
|Operation:||Receptacle removable for servicing by unlocking waste container|
|Installation:||Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-5/8" w x 29-1/8" h x 4"d. Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required|
|Size:||17-1/8" (435mm) w x 30-5/8" (777mm) h x 12-3/4" (324mm) d|
|Capacity:||18 gal. (2.5 cu. ft.)|
|Barrier-Free Code Compliance:||Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.)|
