Description

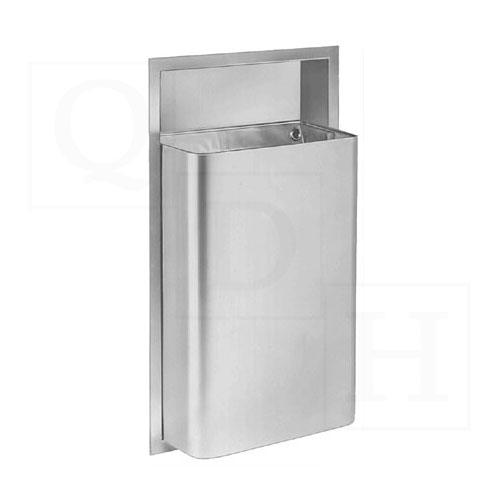

Recessed waste receptacle shall be fabricated of heavy gauge stainless steel with seamless exposed surfaces in satin finish. Removable 12-gal. stainless steel waste receptacle secured to cabinet with tumbler lock. Heavy duty vinyl liner is optional
Features
- Satin finish Stainless Steel
- Waste container projects 4-3/4"
- Recessed
- BradEX ®
Specifications
| Materials: | Flange: 22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with 1/4" return. Cabinet:heavy gauge stainless steel. All welded construction. Waste Container: 22 gauge stainless steel. All welded construction. Secured to cabinet with tumbler lock keyed like other Bradley units. Liner: (optional) heavy-duty stitched vinyl-coated nylon. Hinged Cover:(optional) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge. Push Flap Door:(optional) 22 gauge stainless steel with exposed surfaces in architectural satin finish. Heavy-duty stainless steel piano hinge. Self-closing flap door is embossed PUSH |
| Operation: | Receptacle removable for servicing by unlocking waste container |
| Installation: | Verify all rough-in dimensions prior to installation. Recessed unit requires rough wall opening 15-5/8" w x 29-1/8" h x 4"d (Semi-recessed unit only 2" deep). Secure to framing with mounting screws (included) at holes provided. Shim at screw points as required. |
| Size: | 17-1/8" (435mm) w x 30-5/8" (777mm) h x 8-3/4" (223mm) d |
| Capacity: | 12 gal. (1.6 cu. ft.) |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
