Description

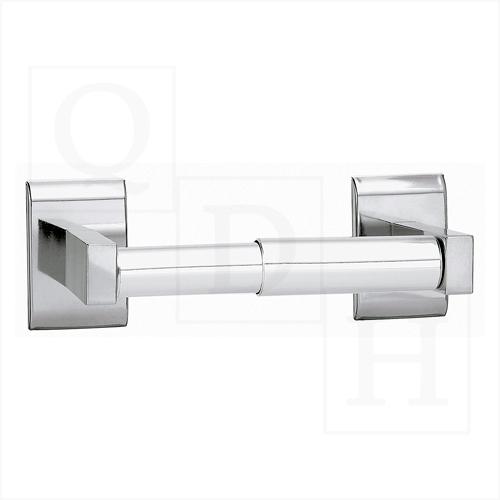

The Bradley 508 Toilet Tissue Dispenser Single Roll Surface Mounted Chrome Plated, The 508 Is a Surface-mounted single roll toilet tissue dispenser is made of chrome-plated cast brass and hold one standard core toilet tissue roll.
Features
- Non-Controlled Delivery
- Single Roll
- Chrome plated brass
Specifications
| Materials: | Unit:chrome-plated cast brass Spindle: chrome-plated plastic |
| Operation: | Remove tissue roll core to access special locking mechanism for servicing. Stops on spindle control paper delivery. Spindle revolves only 1/2 turn for each dispensing operation and returns to original position |
| Installation: | Verify all rough-in dimensions prior to installation. Secure concealed wall mounting brackets to wall with screws (included) at holes provided. Slide escutcheons and posts over projecting pins on mounting brackets and secure with concealed set screw |
| Size: | 7 1/2" (191mm) w x 1 3/4" (44mm) h x 3 1/4" (83mm) d |
| Capacity: | One standard core toilet tissue roll through 5 1/2" in diameter |
| Weight: | 1.00 lbs |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
