Description

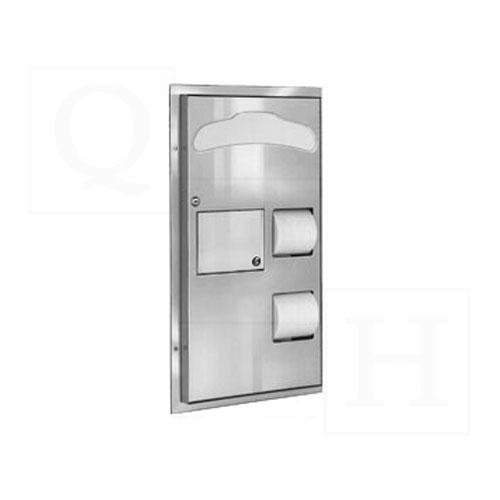

Bradley 591 2-Stall Seat Cover-Tissue Dispenser Napkin Disposal Partition Mounted
The Bradley 591-2 Is a Partition mounting combination unit That includes a toilet seat cover dispenser, toilet tissue dispenser, and napkin disposal, The 591-2 Is fabricated of heavy gauge stainless steel with seamless exposed surfaces in satin finish. Door and back panel Is 18 gauge. Door shall have piano hinge and tumbler locks
Features
- Partition Mounted
- Serves Two Compartments
- Seat Cover Dispenser
- Dual Roll Tissue Dispenser
- Satin finish Stainless Steel
- Napkin Disposal
- BradEX ®
Specifications
| Materials: |
Cabinet: 22 gauge stainless steel with exposed surfaces in architectural satin finish. Welded construction with burr-free edges Flange:22 gauge stainless steel with exposed surfaces in architectural satin finish. One-piece seamless construction, 1" wide with 1/4" return Door: 18 gauge stainless steel with full-length piano hinge and tumbler lock keyed like other Bradley units Push Flap Door:22 gauge stainless steel with exposed surfaces in architectural satin finish. Self-closing, with heavy-duty stainless steel piano hinge Waste Receptacle: leakproof molded plastic. 0.88 gal. capacity Spindle: polyethylene, non-removable by user |
| Operation: | Hinged access door permits servicing of components from one side |
| Installation: | Verify all rough-in dimensions prior to installation. Requires partition opening 15-3/8" w x 28-7/8" h. (Location of hole and dimensions should be noted in partition specifications.) Flanges adjustable for partitions from 3/8" to 2-3/4" thick. Remove one flange and install cabinet in partition opening flush against partition. Position flanges on both sides of cabinet and secure with mounting screws (included) at holes provided |
| Size: | 17-1/8" (435mm) w x 30-5/8" (778mm) h x 4-1/2" (114mm) d |
| Capacity: | Toilet Seat Cover Dispensers 1,000 standard single-fold or half-fold toilet seat covers; Toilet Tissue Dispensers four standard core toilet tissue rolls through 5-1/4" in diameter. |
| Weight: | 28.00 lbs |
| Manufacturer: | Bradley |
Certifications
| Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
