Description

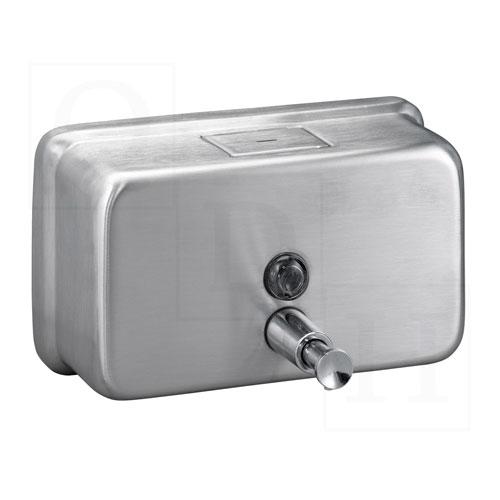

Bradley 6542 Soap Dispenser Horizontal Tank Stainless Steel, The Bradley 6542 Is a Surface-mounted liquid soap dispenser fabricated of 20 gauge satin finish stainless steel That Is completely concealed mounting, vandal resistant filler hole cover and sight gauge. The 6542 Push-in corrosion-resistant liquid soap valve. Capacity: 40 oz. liquid soap. Requires less than 5 lbs. of force to dispense soap
Features
- 24 per master carton
- ADA Compliant
- Tank Type - Horizontal
- Surface Mounted
- BradEX ®
Specifications
Materials: | Body:20 gauge stainless steel with exposed surfaces in architectural satin finish Back: 20 gauge stainless steel; welded to the body Wall Plate: Stainless steel Soap Valve: Chrome-plated brass housing with ABS plastic mechanism |
Operation: | Push-in valve dispenses measured amount of vegetable or coconut oil liquid soaps, synthetic detergents, and antiseptic solutions with less than 5 lbs. of force. Sight gauge indicates refill time. Locked filler top opens with special key provided |
Installation: | Verify all rough-in dimensions prior to installation. Secure separate mounting bracket to wall. Slide dispenser into place and secure locking screw through filler hole |
Size: | 8 3/16" (208mm) w x 4 7/8" (124mm) h x 2 7/8" (73mm) d |
Capacity: | 40 oz. liquid soap |
Weight: | 2.00 lbs |
Manufacturer: | Bradley |
Certifications
Barrier-Free Code Compliance: | Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.) |
