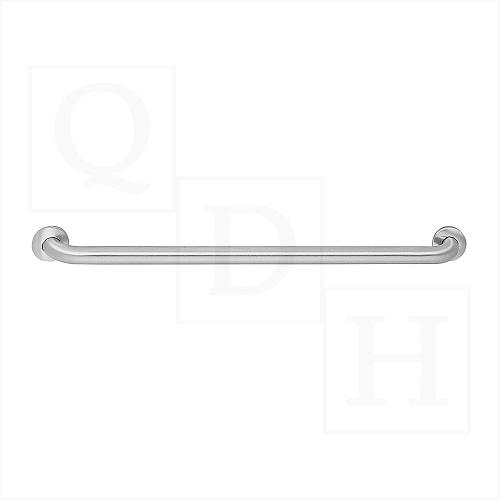

Safety-grip finish 1 1/2" O.D. heavy-duty stainless steel grab bar with concealed mounting
Features:
1-1/2" O.D
Safety-grip finish
Concealed Mounting
Heavy Duty Stainless Steel
Specifications
Materials:
Flanges: 3 1/8" dia. 13 gauge stainless steel Escutcheons: 22 gauge stainless steel. One-piece drawn construction with exposed surfaces in architectural satin finish. Snap over flanges to conceal mounting screws Tubing: 1 1/2" O.D. 18 gauge stainless steel, seamless construction with exposed surfaces in architectural satin finish. Bent ends of tubing pass thru the flanges and are welded for maximum strength. Intermediate supports are contour cut and joined by welding to form an integral part of the grab bar. All exposed welds are ground and polished to blend. The mandrel bending process maintains a uniform bar diameter. The return provides 1 1/2" Standard safety clearance between the wall and bar
Installation:
Verify all rough-in dimensions prior to installation. Secure to wall where adequate in-wall backing exists. Use the bar as a template to locate mounting holes. Drill holes and set anchors as appropriate. Mount the grab bar and secure the mounting screws. Snap escutcheons into place
Size:
8122-001180: 1-1/2" OD X 18 8122-001240: 1-1/2" OD X 24 8122-001360: 1-1/2" OD X 36 8122-001420: 1-1/2" OD X 42 8122-001480: 1-1/2" OD X 48
