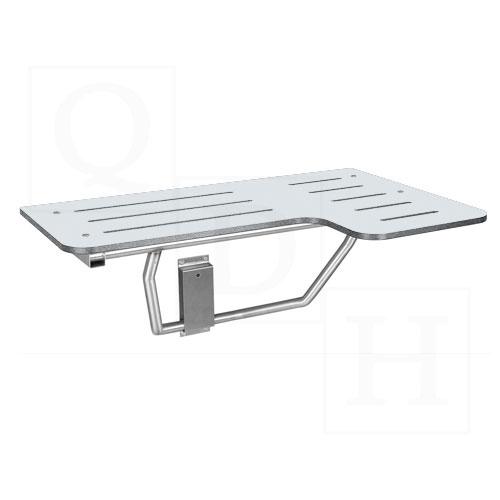

Bradley 9569 Reversible Phenolic Shower Seat Is Reversible folding white phenolic shower seat shall be 1/2" thick phenolic with Melamine bonded to its phenolic core, Features Barrier-Free Design BradEX ®, The 9569 Has a Stainless Steel frame, Color Options White, Sand , Silver Gray.
|Materials:|| Frame: satin finish stainless steel; 18 gauge 1" diameter tubing with 11/2" HDPE support bars. |
Mounting Flanges:7 gauge satin finish stainless steel with three mounting holes provided in each flanges for installation.
Lower Support Bracket: 16 gauge satin finish stainless steel
Seat: 1/2" thick solid phenolic. White matte finish Melamine bonded onto the phenolic for color
All exposed edges are machined smooth to a uniform dark finish. Reversible in field to be right or left hand
|Installation:||Verify all rough-in dimensions prior to installation. Provide concealed backing or anchors as specified by architect before finished wall is applied. Secure to wall with mounting screws (not included) at holes provided. Locate mounting holes at appropriate height above finished floor to meet seat height requirement. Secure lower support bracket to wall at appropriate location. Seat is reversible, may be made into a right hand seat|
|Operation:||Hinged seat folds up and out of the way when not in use. When properly installed, seat can support up to 250 lbs. - static load|
|Size:||34 1/2" w x 22" d x 1/2" thick|
|Barrier-Free Code Compliance:||Complies with barrier-free accessibility guidelines (including ADAAG in the U.S.A.)|
