Description

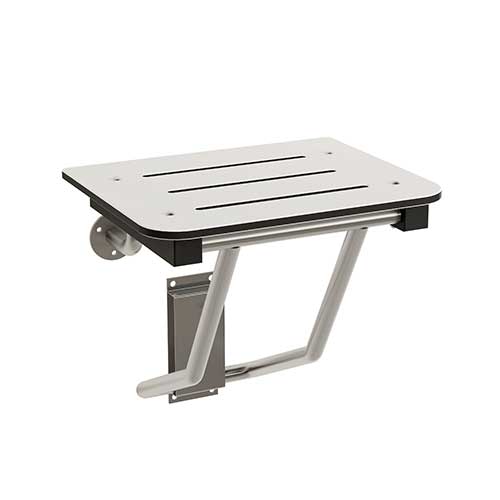

Bradley 9591 White Solid Phenolic Folding Square Shower Seat, Folding white phenolic shower seat is 1/2 Inch thick phenolic with Melamine bonded to its phenolic core, Secured to the frame of 18 gauge, 1" diameter tubing, and 1-1/2" HDPE support bar.
Features
- Frame: 1" dia. 18 gauge stainless steel tubing, welded
- Wall Bracket: 16 gauge stainless steel with stainless steel piano hinges
- Retaining Bracket: 16 gauge stainless steel. Positive bullet-type catch holds the seat securely in the up or down position
- Seat: 5/16" thick solid phenolic core composed of compressed cellulose fibers impregnated with resins. Surface laminate is fused to the core. All exposed edges are machined smooth to a uniform dark finish
Specifications
| Materials: |
Frame: 1" dia. 18 gauge stainless steel tubing, welded Wall Bracket: 16 gauge stainless steel with stainless steel piano hinges Retaining Bracket: 16 gauge stainless steel. Positive bullet-type catch holds the seat securely in the up or down position Seat: 1/2" thick solid phenolic core composed of compressed cellulose fibers impregnated with resins. Surface laminate is fused to the core. |
| Installation: | Verify all rough-in dimensions prior to installation. Provide concealed backing or anchors as specified by an architect before the finished wall is applied. Secure to wall with mounting screws (not included) at holes provided. Locate mounting holes 16-1/16" above the finished floor for comfortable adult use. Mounting kit available from Bradley |
| Operation: | The hinged seat folds up and out of the way when not in use. When properly installed, the seat can support up to 250 lbs. static load |
| Size: | 17" Wide x 15" Deep x 1/2" Thick |
| Weight: | 18.00 lbs |
| Manufacturer: | Bradley |
