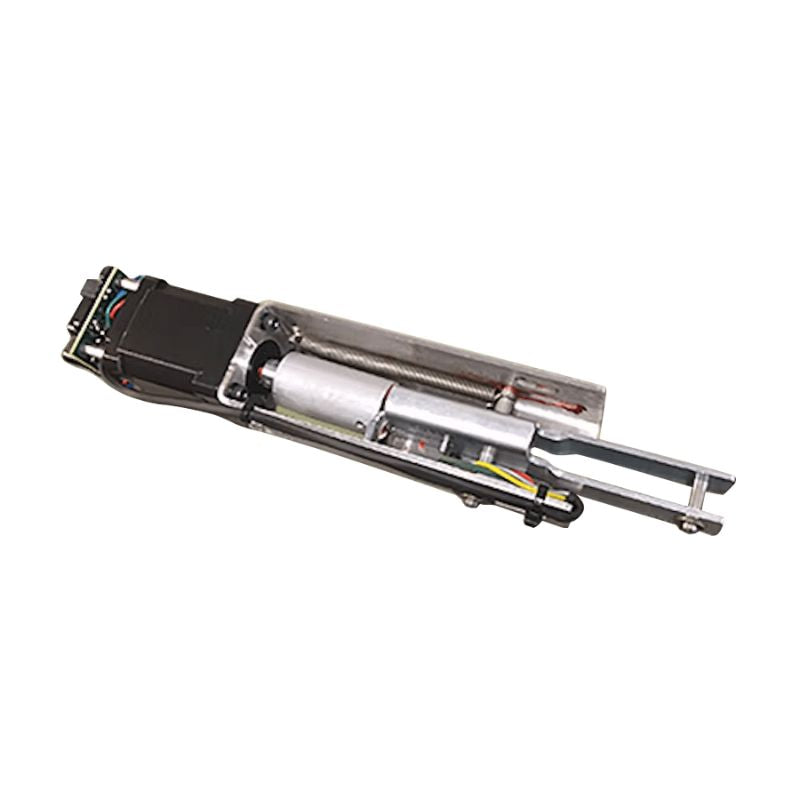

Command Access Technologies MLRK1-CAL77 Motor Latch Retract Kit, For Cal Royal 7700 Series Exit Device

The MLRK1-CAL77 is an efficient and cost-effective solution for converting a mechanical Cal-Royal 77 or PD26 series device into an electrified latch pullback device, while retaining all UL listings for the device. This retrofit kit is backed by CAT’s 3-Year No Hassle Warranty, providing added peace of mind. Installation is straightforward, as the kit attaches directly to the back-activating bracket and is fastened with just two screws in seconds. The only drilling required is for the wire raceway. The kit features the PTS "Push to Set" technology, which facilitates smooth post-installation adjustments of the latch or latches. Moreover, it includes an updated MM4S module that offers three different energy consumption settings, ranging from energy-efficient to high torque, ensuring it can handle even the most challenging tasks.

• Next Generation MM4S Smart Module: Onboard diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5-second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be built in
• 3-Year “No Hassle” Warranty

• Work with Cal Royal 7700 Series Exit Device
