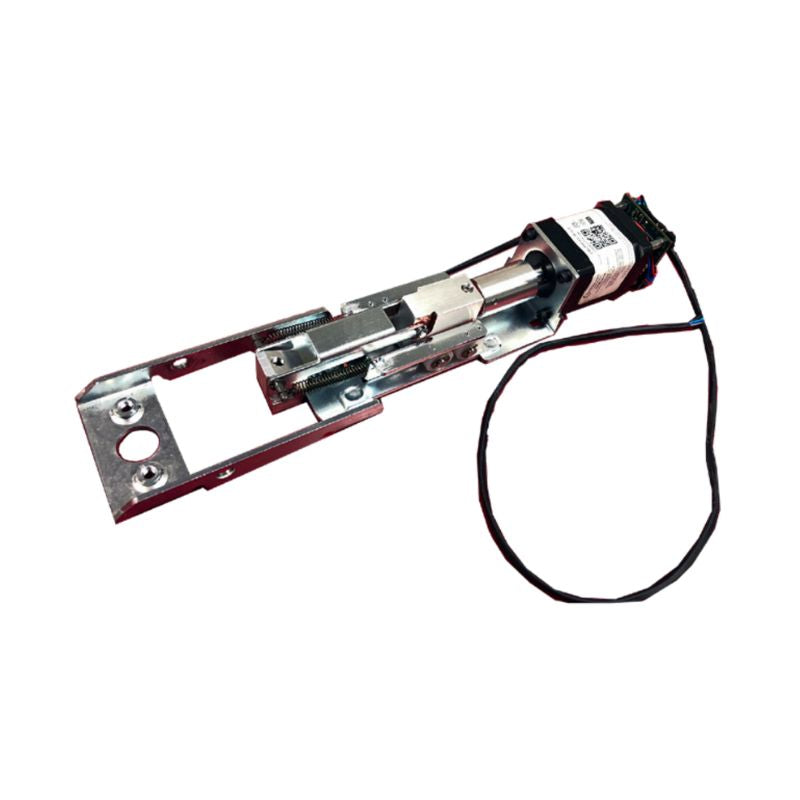

Command Access Technologies MLRK1-DRX Motor Latch Retract Kit, Dorex 9500 Series Exit Device

The MLRK1-DRX provides a high-quality, cost-effective solution for converting a Dorex 9500 series device into an electrified latch pullback exit device. This kit enhances functionality by retracting the push pad, enabling the device to be electrically dogged so that it can remain in a push/pull state indefinitely. Equipped with the patent-pending Push to Start (PTS) Technology, it simplifies post-installation adjustments of the latch or latches. Additionally, the kit includes a motor module that offers two torque settings, ranging from energy-efficient to high torque, ensuring it can handle the most demanding tasks efficiently.

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Optional Request-to-exit can be added
• 3-year “no hassle” warranty

• Work with Dorex 9500 Series Exit Device
