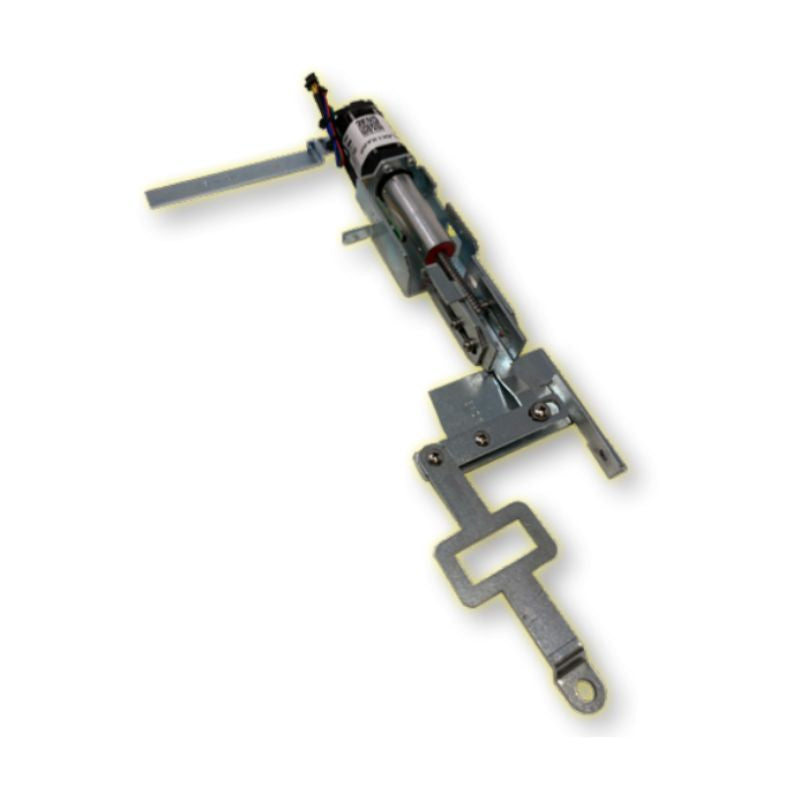

Command Access Technologies MLRK1-KAWP-RX Motorized Latch Retraction Kit, With Request To Exit, Kawneer Paneline Series Exit Device

The MLRK1-KAWP is a robust and innovative motorized latch retraction kit designed for field installation on Kawneer Paneline® series exit devices. This kit features our patent-pending custom ball screw assembly and a CAT-designed custom stepper motor, which together maximize pulling force while maintaining a compact size that fits seamlessly inside the push pad without any clearance issues. Installation requires drilling only for the raceway. Additionally, the kit employs our PTS "Push to Set" technology, which simplifies post-installation adjustments, making it incredibly user-friendly and efficient to set up.

• MM4 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to a “Low Current” or “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• 8’ cable with Quick Connect for MM4 module to easily connect to power supply lead
• Optional add on: Pre-prepped for Request to Exit (REX) to be built-in or easy field add.
• 3-Year “No Hassle” Warranty

• Request to Exit
• Work with Kawneer Paneline Series Exit Device
