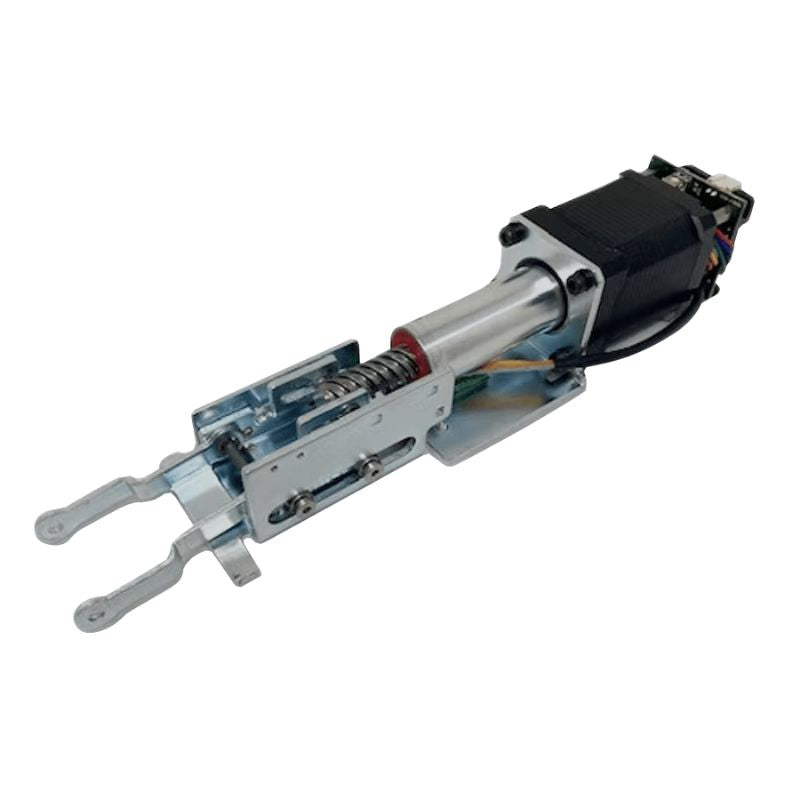

Command Access Technologies MLRK1-MRK Motorized Latch Retraction Kit, For Marks M9900 Series Exit Device

The MLRK1-MRK is a durable and easy-to-install motorized latch retraction kit tailored for Marks M9900 series exit devices. This kit features a custom assembly, designed by CAT, to optimize the pulling force. Installation is straightforward, requiring only a single hole for the raceway. It incorporates our innovative 1-touch PTS "Push to Set" technology, which simplifies post-installation adjustments significantly. Additionally, an optional built-in REX switch is available for all units, enhancing functionality and security.

• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues.
• “PTS”: 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
• Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
• Electric dogging rated for continuous duty - Auto reengage if push pad is pulled from dogged position
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
• 3-year “no hassle” warranty

• Work with Marks M9900 Series Exit Device
