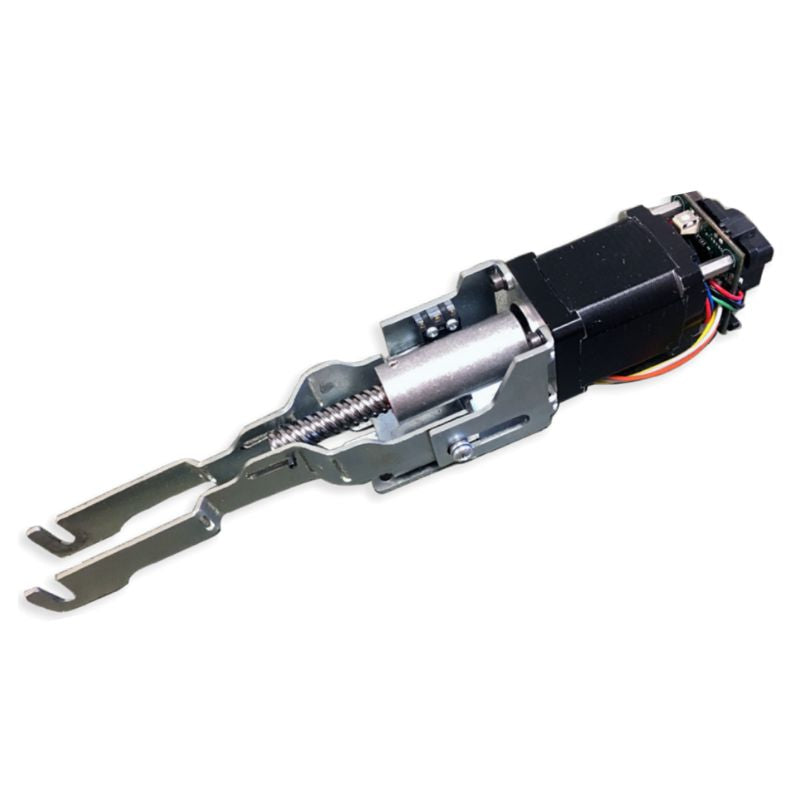

Command Access Technologies MLRK1-TS-REX Motorized Latch Retraction Kit, With Request To Exit, For Townsteel 1100 Series Exit Device

The MLRK1-TS offers a practical and cost-effective solution for converting mechanical Townsteel 1100 Series series devices into electrified latch pullback devices. This retrofit kit ensures all UL listings on the device are maintained and comes with a 3-year no-hassle warranty from CAT for added peace of mind. Installation is quick and straightforward, attaching easily to the back activating bracket with just two screws, and requires only a single hole for the wire raceway. The kit features PTS technology for smooth post-installation adjustment of the latch or latches. Additionally, an optional built-in REX switch is available for all units. The kit also includes an updated MM4S module that offers two energy consumption settings, ranging from energy-efficient to high torque, to efficiently handle demanding tasks.

• Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e., the same closet as the access control panel
• Push-n-Go Pigtail + 6’ cable with Quick Connect for MM4S module to easily connect to power supply lead
• Request-to-exit
• 3-year “no hassle” warranty

• Work with Townsteel 1100 Series Exit Device
