Description

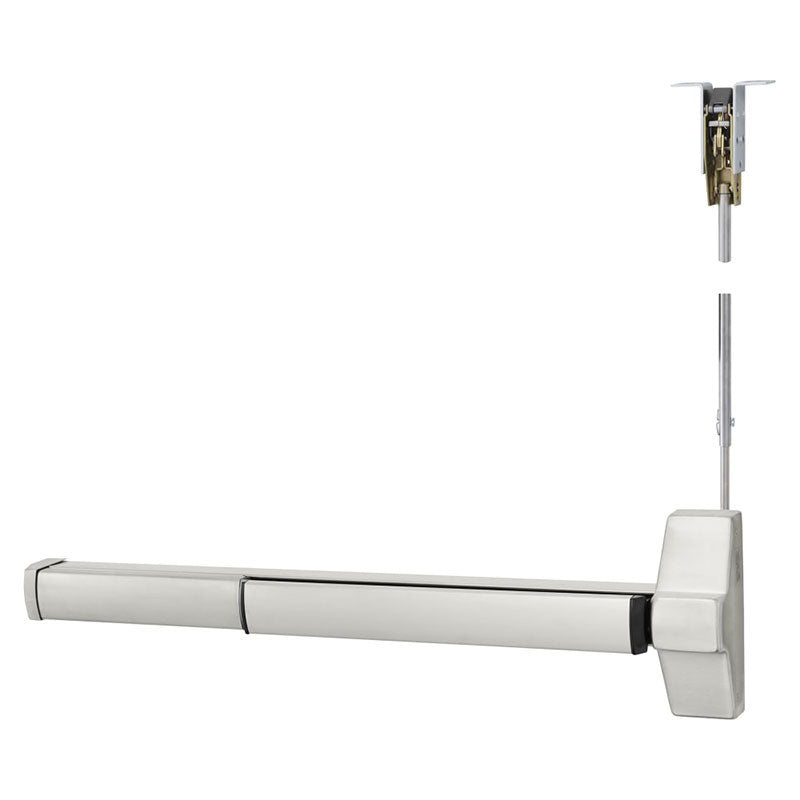

The Corbin ED5860B-EO-48x96-M55-630 is a 48" Wide and 96" High Concealed Vertical Rod Exit Device, that is M55 Less Bottom Rod, is Fire Rated, has No Dogging, is Reversible, and comes in 630 Satin Stainless Steel Finish.
ED5000 Series Pushpad Exit Devices
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations. These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in rim, mortise, surface vertical rod and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5 year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
Product Specs
| Manufacturer | Corbin Russwin |
| SKU | ED5860B 630 M55 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Limited Warranty | 5 Years |
| Fire Rated | 1 1/2 Hours {B} {D} |
| Finish | 630/US32D |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Concealed Vertical Rod |
| Mechanical Function | Exit Only, Accepts Trim |
| Device Length | 48" |
| Hand | Reversible |
| Mechanical Options | Less Bottom Rod |
| Dogging Options | Less Dogging |
| Top Strike | 681F77-8 |
| Strike Bottom | 650F57-8 |
| Includes Trim | No |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4 1/2" |
| Door Material | Metal or Wood |
| Door Width | 43" - 48" |
| Door Height | 96" |
| Door Thickness | 1 3/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Concealed Vertical Rod Exit Devices |
